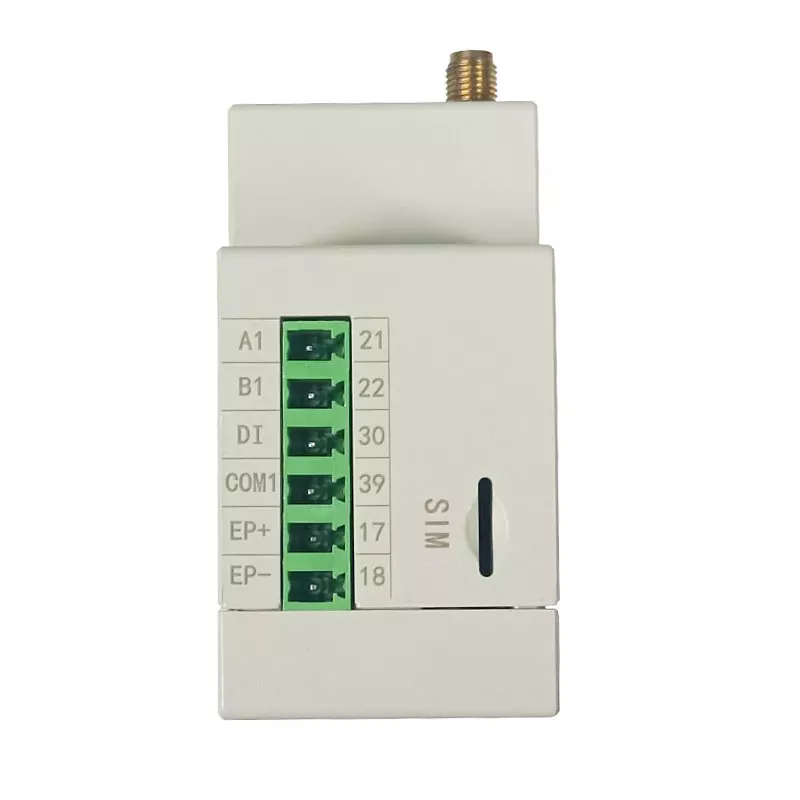

ADW310-WIFI IoT wireless Power Meter

ADW310-WIFI


● Wireless Comms.: WIFI

● Wired Comms.: RS485 (MODBUS-RTU)
● Rated Voltage: 220~264Vac L-N
● Rated Current: 20(100)A AC (via paired CT)
● Measurement: 1-phase Active&Reactive Energy, Active&Reactive Power, Current, Voltage, Frequncy, Power Factor, Apparent Power
● I/O Function: 1-way DI & 1-way DO
● Temperature: 2-way Cable Temperature Measurement
● Pulse Output: Active Pulse Output



Description

General


ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions,etc., and has many optional communication methods. It can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas and different loads.




Function




Accuracy

Active energy: Class 1.0

Pulse Output

Constant: 1600imp/kWh;

Consumption

<2W



Dimension (L*W*H)

Panel size (L×W×H):90*36*70 mm

Wireless

4G, WiFi (MQTT, MODBUS-TCP)

Frequency: Range: 50~60Hz

Starting current: 4lb

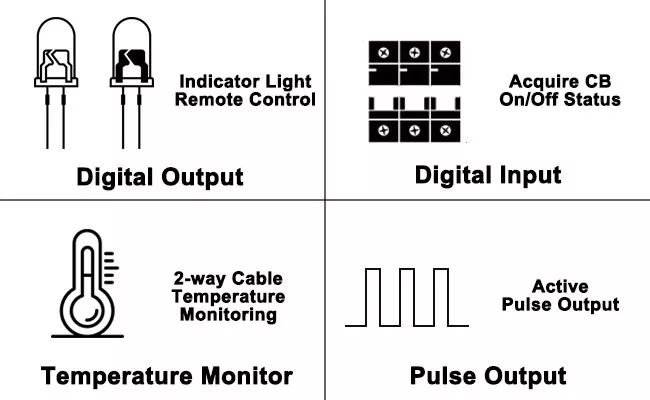

Multiple Extra Function

● 1-channel DO (Digital Ouput)

● 1-channel DI (Digital Input)

2-channel Cable Temperature Monitor

● Active Pulse Output

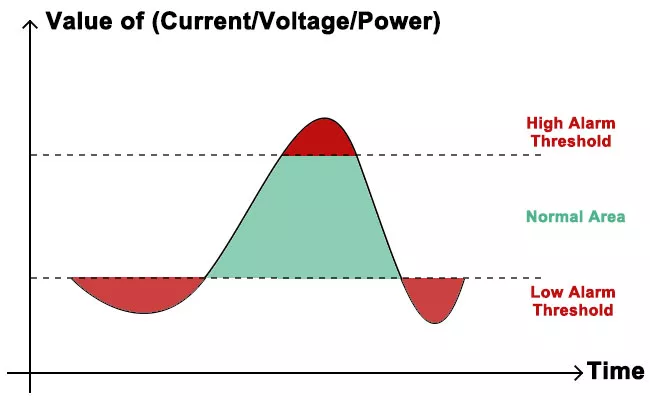

Alarm function

● Over/Under Current

Over/Under Voltage

Over/Under Power


Parameters


ParameterDescription&Value
Voltage
Input
Rated Voltage

220~264Vac L-N

Reference Frequency45~65Hz
Power Consumption<0.5VA (each Phase)
Current
Input
Rated Current20(100)A AC
Starting Current1% Ib (Class 0.5); 4% Ib(Class 1)
Power Consumption<1VA (each Phase)
Phase
Wiring
1P2W1-phase 2-wire
Measurement
Performance
Standard

GB/T17215.322-2008,GB/T17215.321-2008

kWh AccuracyClass 1
Pulse
Width of Pulse80±20ms
Pulse Constant1600imp/kWh;



Structure

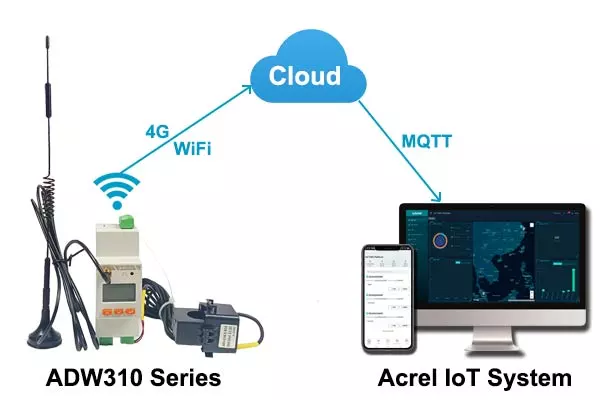

Online&Remote Energy Monitoring

Paired with Acrel IoT EMS

● PC Access via IoT EMS WEB

● Mobile Phone Access via IoT EMS APP

4G Wireless Communication (Global)

● WiFi Wiress Communication (2.4GHz)

● Support MQTT, MODBUS-TCP protocol

● Support standard RS485 (MODBUS-RTU)

Wiring

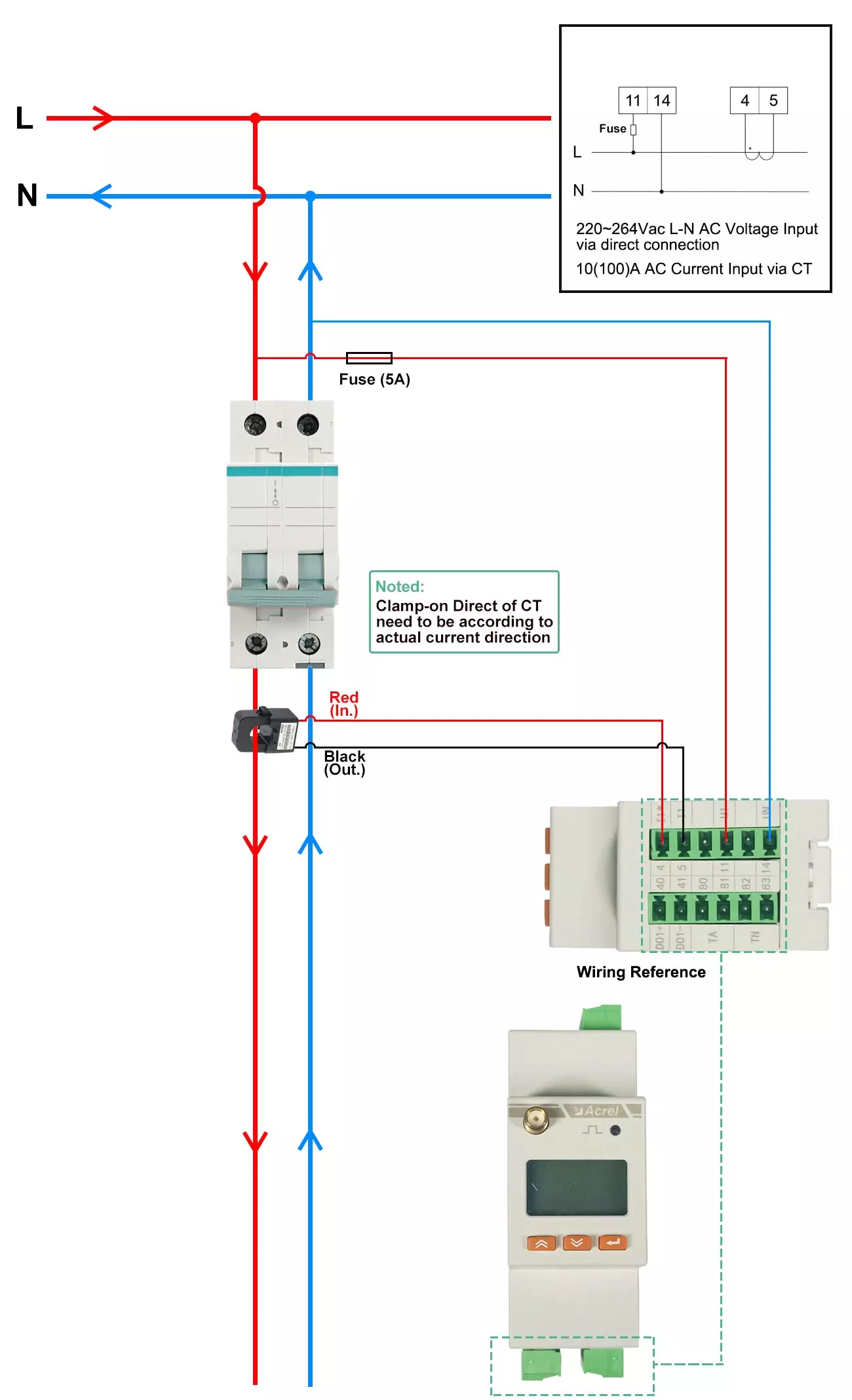

1-phase 2-wire Wiring Diagram (Voltage&Current Input)



Network




Package




MINIMUM PACKAGE







MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.233Kg


WHOLE BOX PACKAGE


Package Dimension(36 PCS)

540*530*490mm

Package Weight(36 PCS)

10kG


PRODUCT HS CODE


9028301300

ATTENTION !

The above packing and weight data are only refer to model ADW300.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!



Pls contact sales for best quotation!

Inquiry Now
