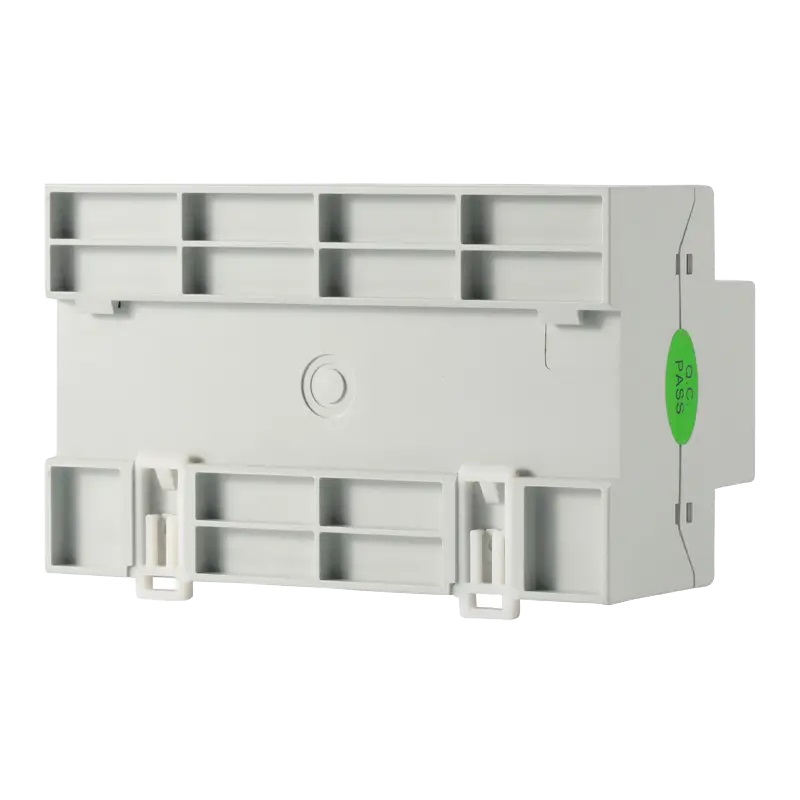

ADL300-EYRF 3-Phase Prepayment Energy Meter

ADL300-EYRF


● AC 3×220/380V

● 1(6)A,10(80)A

● Prepaid mode

● Alarm for dump energy

● LCD display

● Historical records

● kWh Class 0.5S

● DIN 35 mm


Description

General


ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The meter has functions of RF card recharge,cooperate with circuit breaker to realize load cut-off and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.


Functions








Accuracy: kWh Class 0.5s


Frequency: 50/60HZ(Optional), Range:45~65HZ


Auxiliary power supply(self supply): 220Vac(L-N),range:154~264Vac


Pulse output: Pulse output kWh


Consumption<4VA(Each phase)



Installation: DIN 35mm


Dimension(L*W*H):144*88*70mm


Active pulse:

Constant: 6400imp/kWh,400imp/kWh


Clock: ≤0.5s/d


Starting current:

Connect directly:0.04A,connect via CT:0.002A





Technical parameters

Technical parameters

ADL100-EY

ADL300-EY

Voltage

Nominal voltage

220V

3*220/380V

Nominal frequency

50/60Hz

Consumption

4VA(Each phase)

Current

Maximum current

60A

6A,80A

Starting current

Connect directly:0.04A,connect via CT:0.002A

Consumption

4VA(Maximum current)

Measurement
performance

Accuracy

Class 1

Class 0.5s

Clock

Accuracy

Error ≤0.5

Active pulse

Width

80ms±20ms

Constant

1600imp/kWh

6400imp/kWh

Communication

Interface

RS485

Protocol

MODBUS-RTU

Temperature range

Operating

-25℃ 55℃

Storage

-40℃ 70℃

Humidity

≤95%No condensation

Altitude

≤2000m

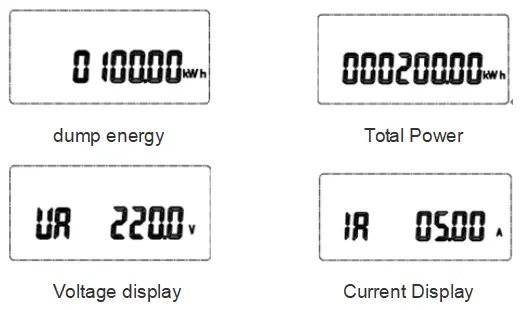

LCD Display

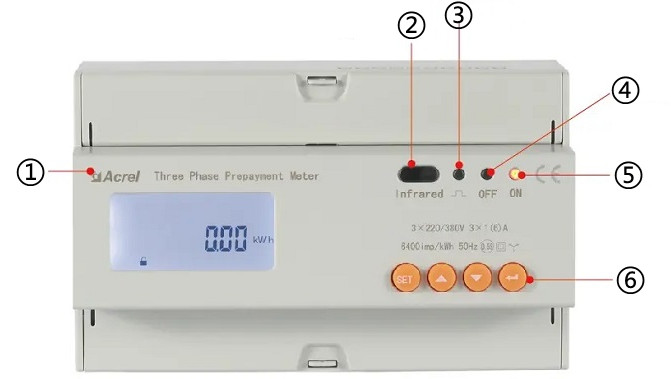

Front Panel




① Brand

② Infrared Interface

③ Pluse Output light

④ Switch opening light

⑤ Switch closing light

⑥ Button

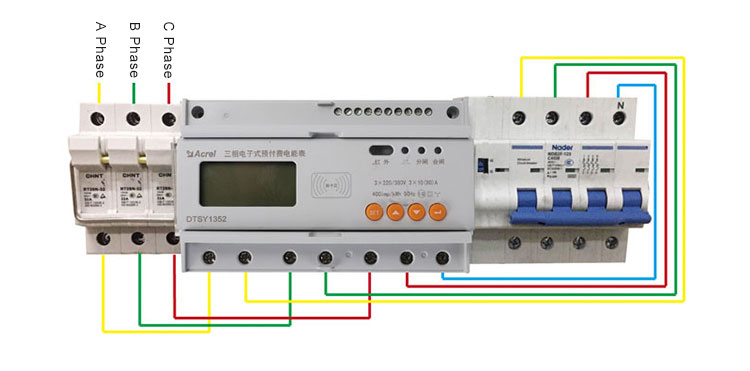

Wiring

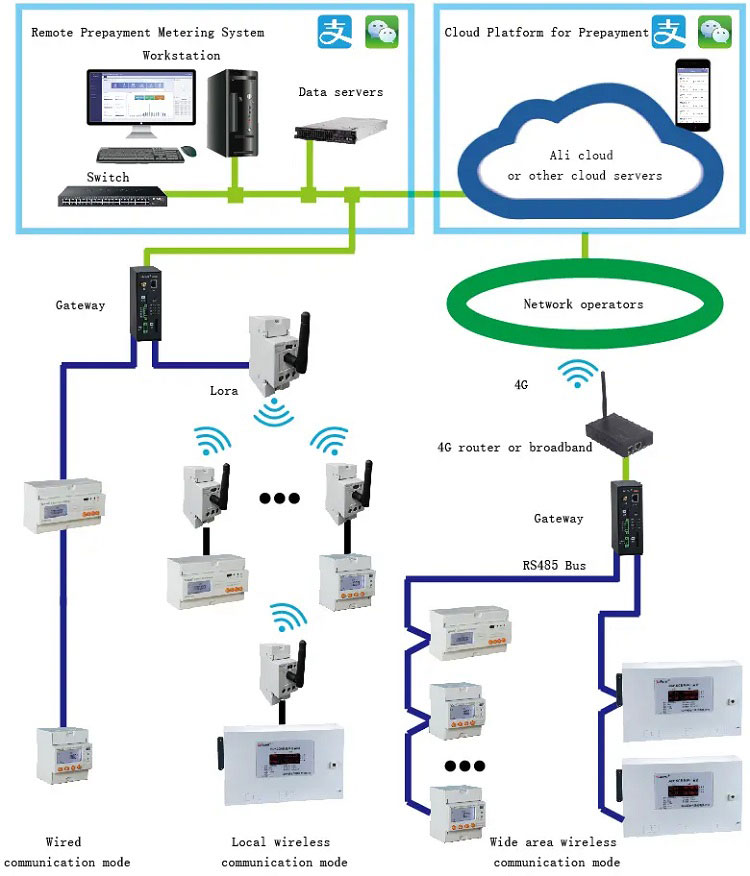

Network

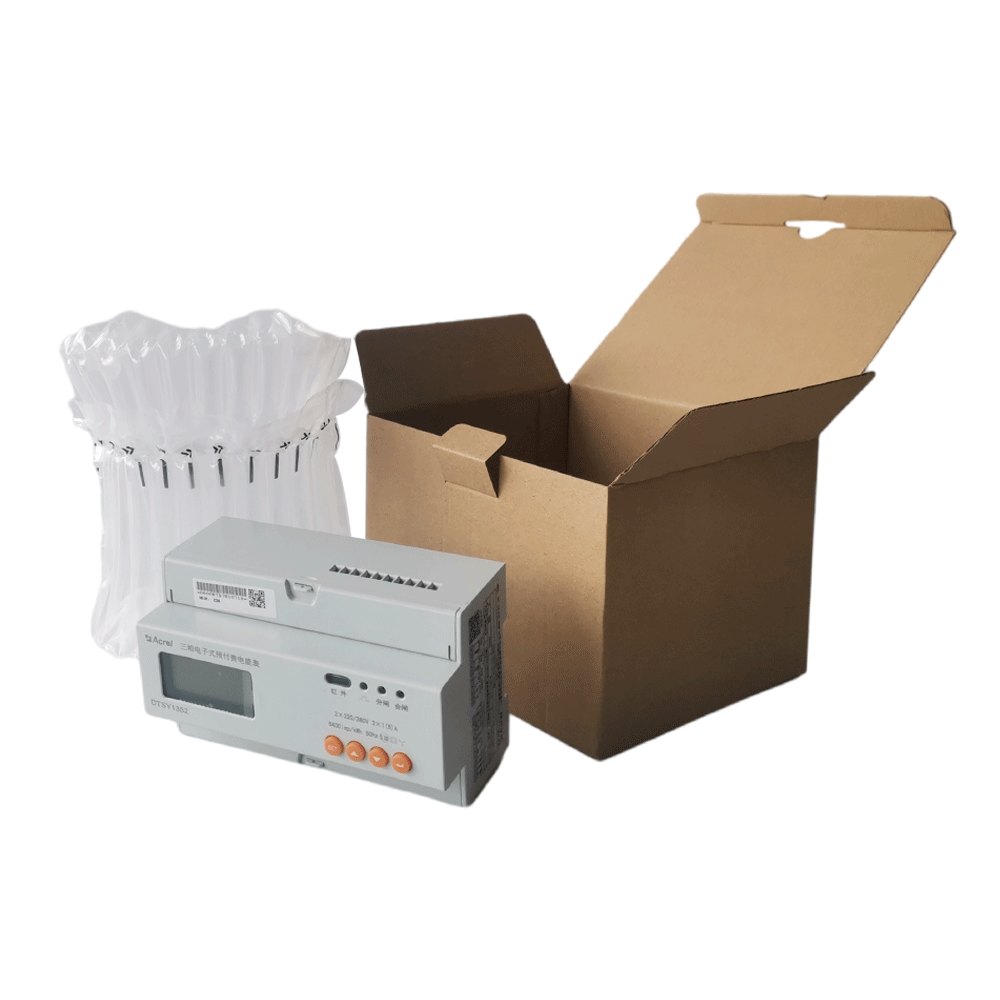

Package





MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Net Weight(1 PC)

0.461KG


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

540*530*480mm

Package Weight(36 PCS)

18.856KG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADL300-EYRF.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
