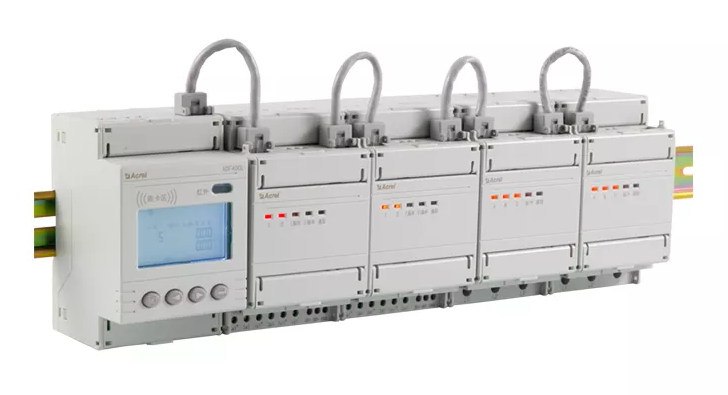

ADF Series Multi-Circuits Energy Meter

ADF400L


●Energy Metering
Total active energy, forward and reverse active energy, multi-rate active energy measurement
●Multiple Tariff Rate
Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates
●Multi module extend
12 three-phase or 36 single-phase direct access measurement
12 three-phase mutual inductor access measurement
●Communication
Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP


Description

General

ADF400L series multi-channel energy meter, through the way of combination module can realize largest 36 circuits single-phase or 12 circuits three-phase, CT connect or direct connect. this series of energy meter with highaccuracy, high concentration, centralized management, installation flexibility, the advantages of each other non-interference by the community, schools, enterprises of all areas. The series of meters support prepaid power function.



Function



Energy Metering

Total active energy, forward and reverse active energy, multi-rate active energy measurement


Multiple Tariff Rate

Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates


Multi module extend

12 three-phase or 36 single-phase direct access measurement

12 three-phase mutual inductor access measurement


Communication

Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP

Installation: DIN 35mm


Dimension(L*W*H)

72*79.5*115 mm


Prepaid Protocol

Cost Control


Switch Relay

Build in Magnetic latching relay


Clock: ≤0.5s/d


Starting Current: 1‰Ib


Parameter

FunctionADF400L
Display
LCD

Energy monitoring

Active energy (positive、negative), Reactive energy (positive、negative)

Power measurement

Voltage、current、power factor、frequency、active power、reactive power、apparent power

Harmonic function

Total harmonic、sub harmonic (2～31)
3 phase unbalance
Voltage, Current unbalance
DI/DOMain module 2DI2DO; CT connect 2DI4DO (direct connect)
CommunicationInfrared; RS485 MODBUS-RTU and DL/T645
History energy

12 month energy record

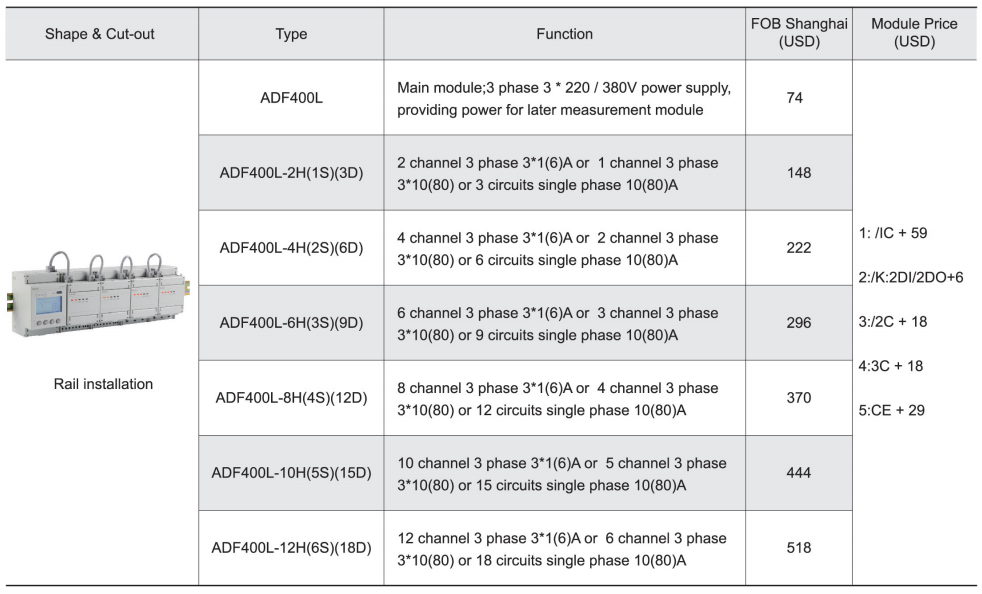

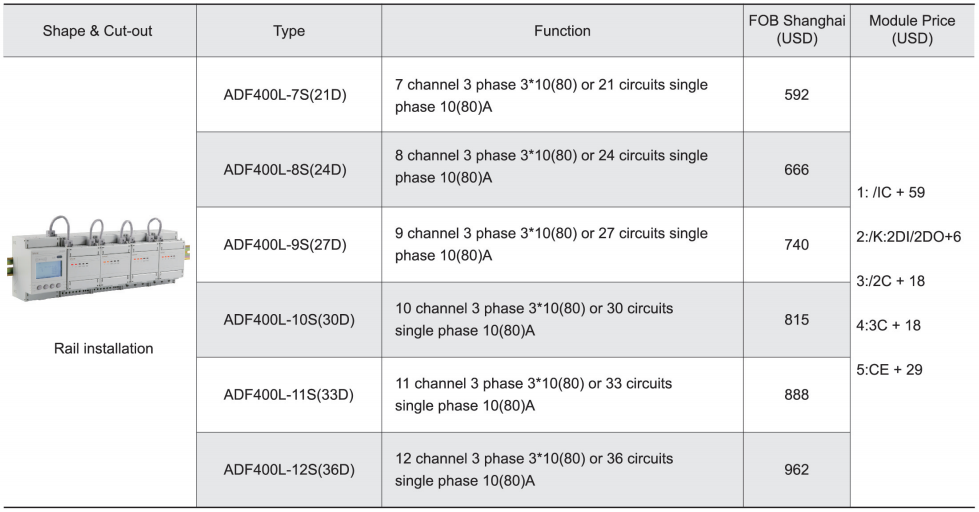

Different Modules



Main Module

1. Three-phase 3*220/380V power supply to provide working power for the back-end measurement module;

2. Man-machine interface: LCD and button programming;

3. Infrared communication;

4. RF card swiping (IC function);

5. 2 Channels RS485 network communication (*C function);

6. RS485 communication for No. 3 extended wireless module (RJ45 connection mode );

7. Up to 2DI/2DO (K function);

8. Up to 1 Ethernet communication (CE function);



Transformer Access Measurement Module

1. Two-way three-phase 3*1 (6) A measurement can be realized;

2. 2 active energy pulse output;

3. 2 three-phase working status, pulse and communicationindication;

4. Up to 4DI/4DO function (K function);




Direct Access to The Measurement Module

1. It can realize one-way three-phase 3*10 (80) measurement or three-way single-phase 10 (80) A measurement;

2.1 active energy pulse output;

3. Three-phase working status, pulse and communication status LED indication;

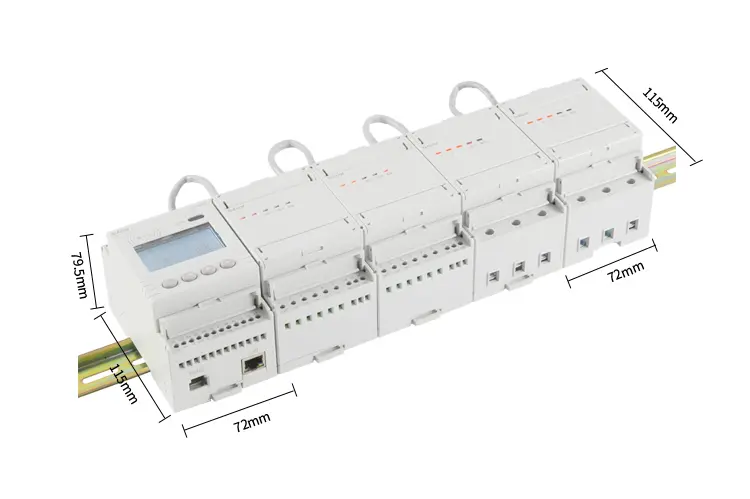

Dimension

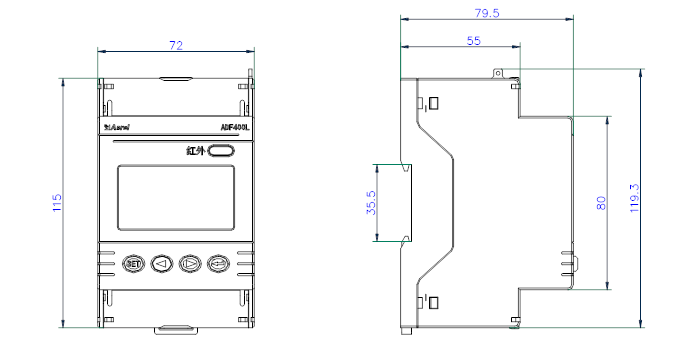

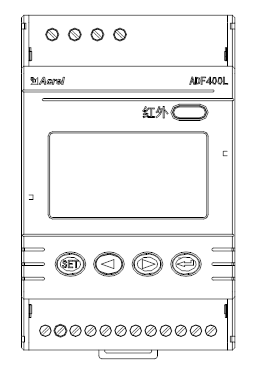

Main module size

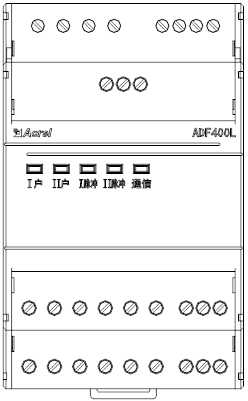

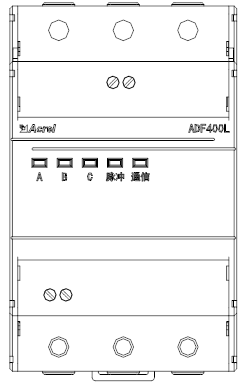

Slave module (direct access or transformer access module) size

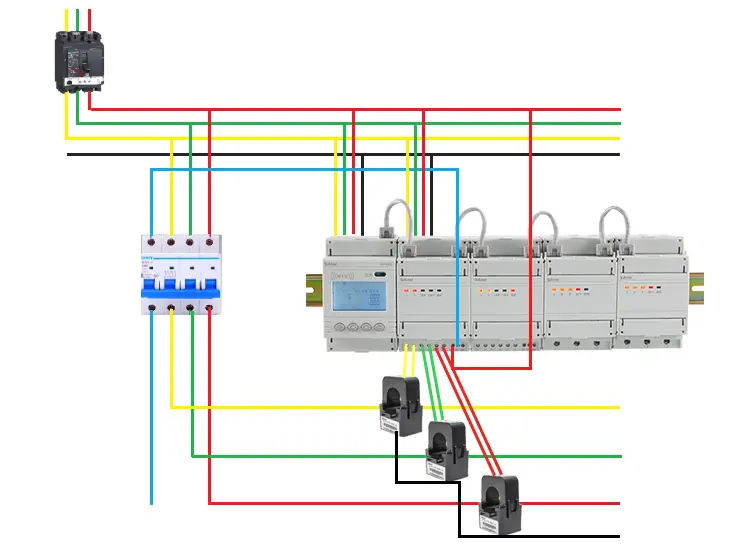

Wiring


Access DirectlyAccess Via CTs

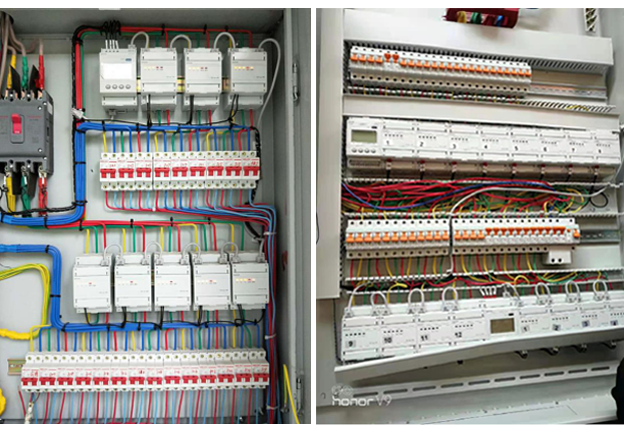

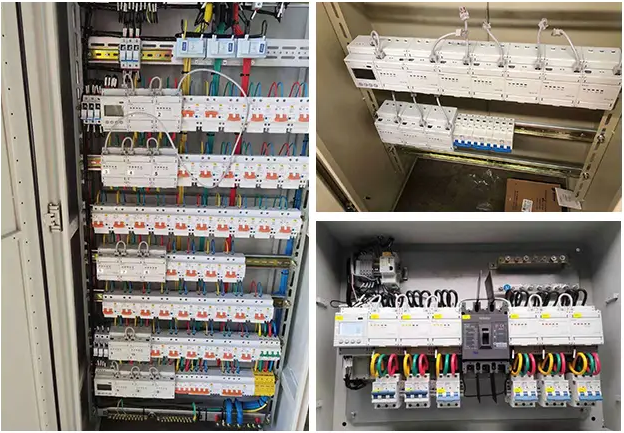

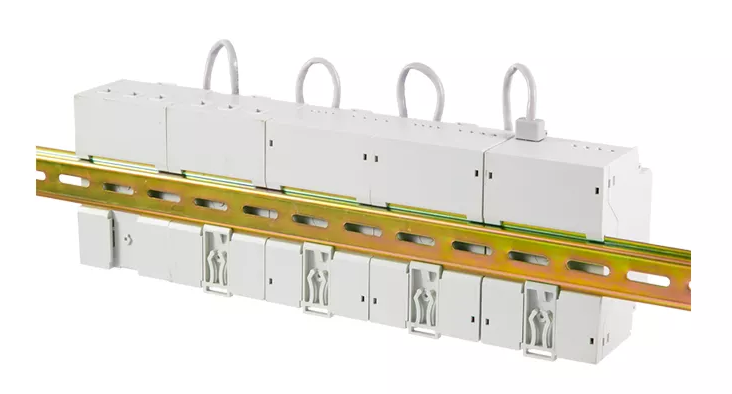

Installation

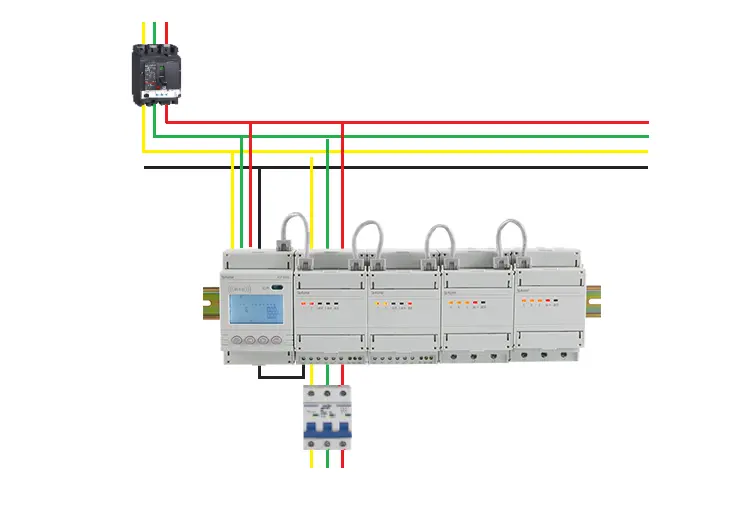

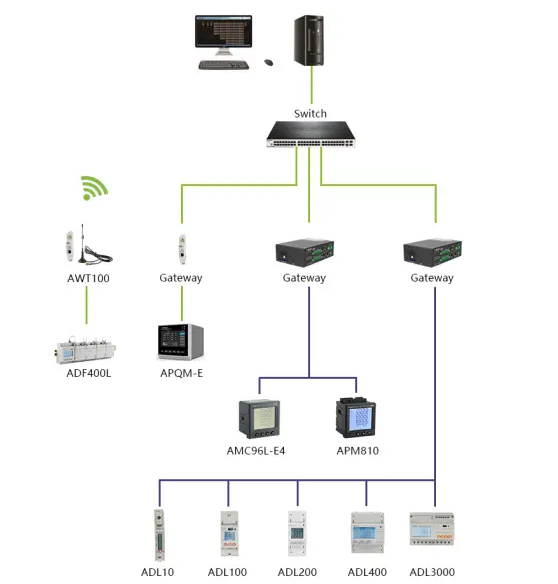

Typical Connection



Package


MINIMUM PACKAGE







MINIMUM PACKAGE


Package Dimension(1 PC)

330*220*150mm

Package Weight(1 PC)

1.45Kg


WHOLE BOX PACKAGE


Package Dimension(10 PCS)

620*480*400mm

Package Weight(10 PCS)

16kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADF400L-6H.
