BA50L-AI/I AC leakage Current Sensor

BA50L-AI/I


- Input: 0-1A leakage current

- Output: DC 4-20mA or DC 0-5V

- Measurement of leakage current

- Overload: 1.2 times of rated value


Description

General

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

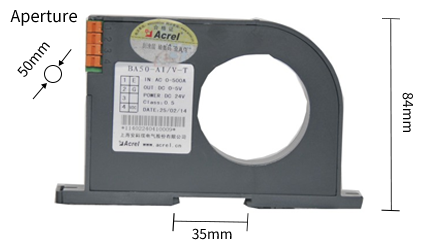

Dimensions


Parameters





Wiring



  • 1 —— + Positive power supply (not reversed)
  • 2 —— - Power EARTH
  • 3 —— G（Current output negative, which can be shared with the power supply）
  • 4 —— IDC(Current output positive)，VDC(Voltage output positive)


Installation



Screw fixed installation


On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

Din Rail installation


Choose a suitable place to install the standard DIN35mm rail,
and install the BA sensor on the rail


Application





Cement BuildingPetrochemical IndustryIron and Steel MetallurgyRail Traffic


Package



MINIMUM PACKAGE





MINIMUM PACKAGE


Package dimensions(1 PC)

16*12.5*7.5cm

Package Weight(1 PC)

0.23Kg


WHOLE BOX PACKAGE


Package dimensions(25 PCS)

45.5*26*19.5cm

Package Weight(25 PCS)

6.75kG


PRODUCT HS CODE


 9030339000

ATTENTION !

The above packing and weight data are only refer to model BA50L-AI/I.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
