Wireless Temperature Monitor

ARTM-Pn Wireless Temperature Monitor Data Display Device for Busbar

ARTM-Pn

● Wireless temperature measurement, maximum measuring 60 points;

● DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs;

● LCD display;

● Dimension: 96*82*96mm (L*W*H)

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● Electric Parameter Meausurement: U,I,P,Q,F,kWh,kVarh (Optional);

● 1 RS485 serial communication, Modbus-RTU.

General

ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears

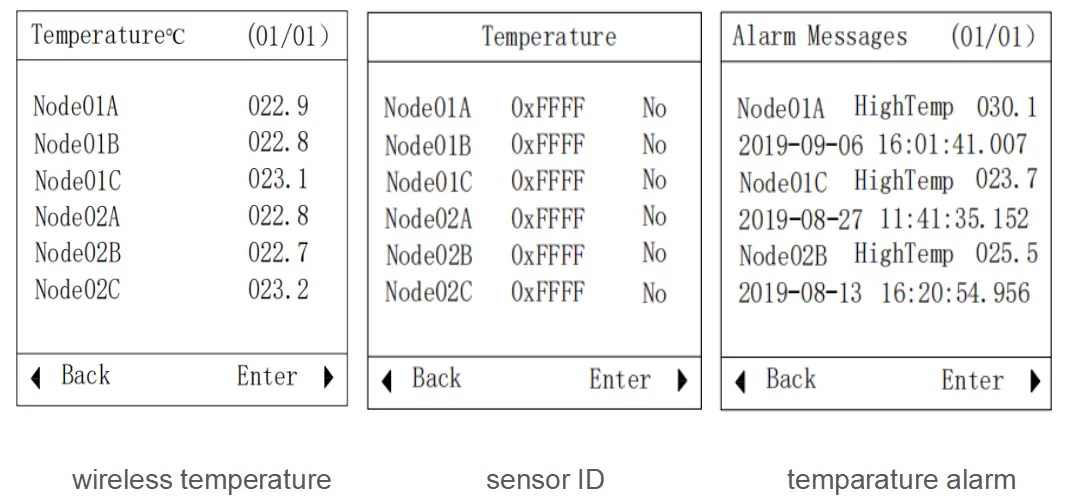

LCD Display

Function Features

1. Wireless temperature measurement, maximum measuring 60 points;

2. 4 digital inputs;

3. 2 alarm relays;

4. 1 RS485 serial communication, Modbus-RTU;

5. High temperature alarm.

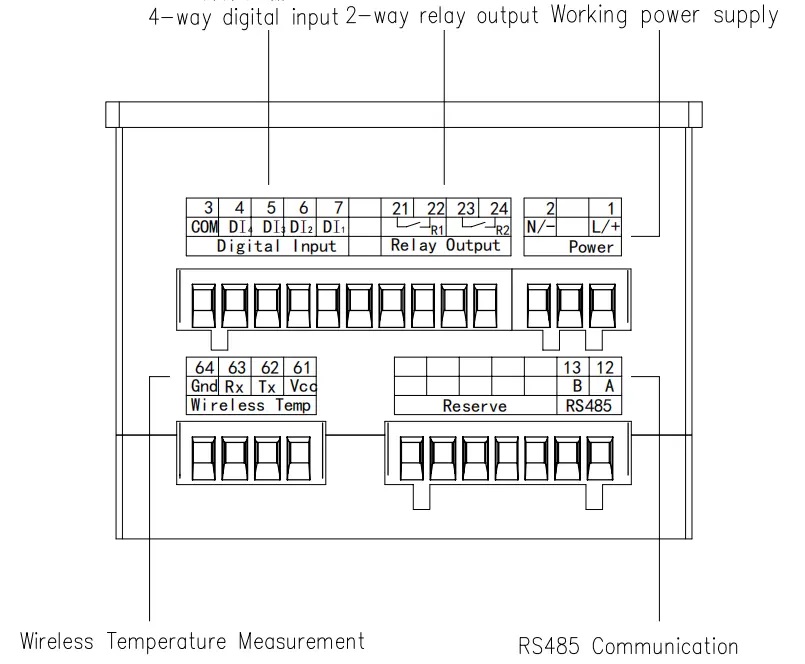

Wiring

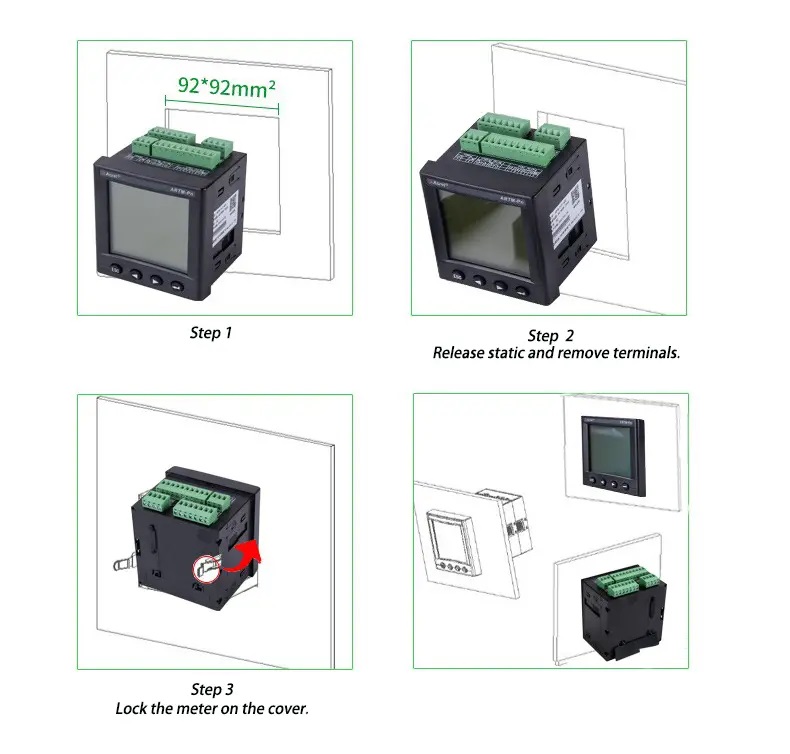

Surface Mounting

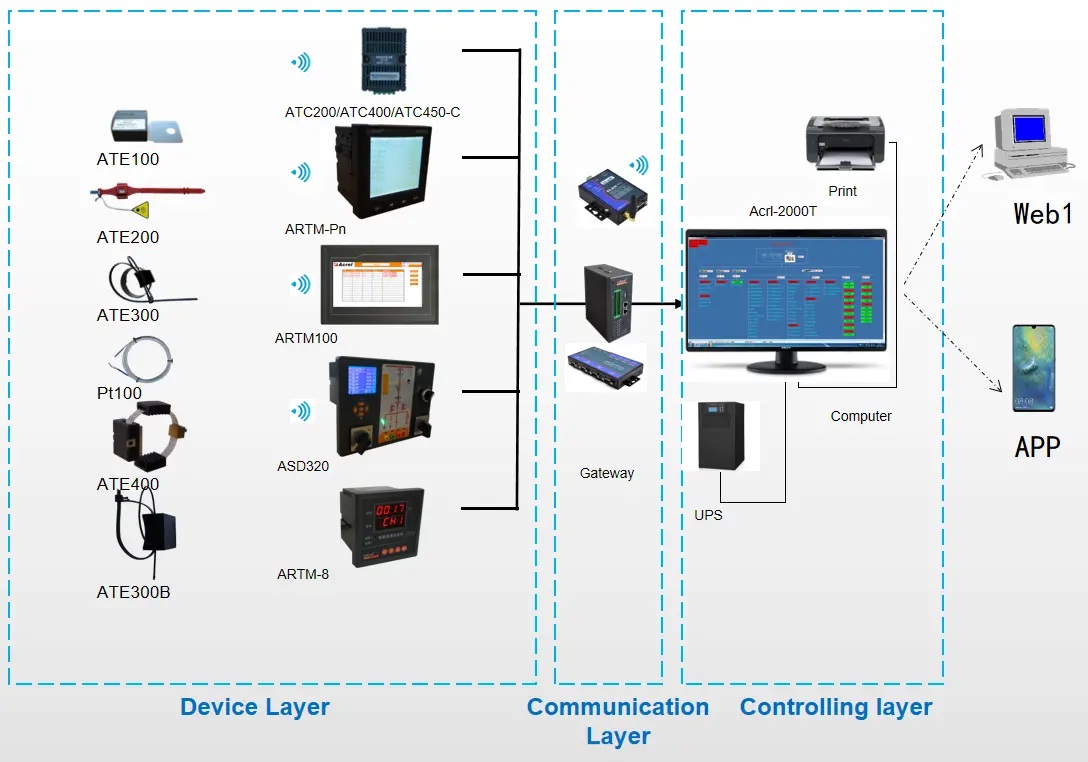

Network

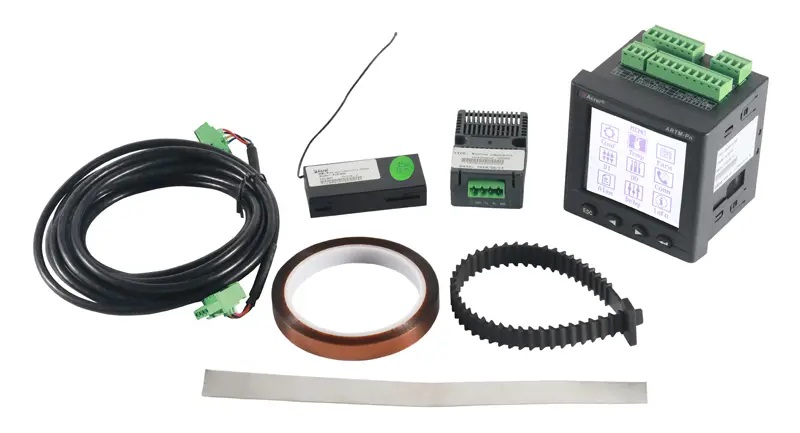

Package

MINIMUM PACKAGE

Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.45Kg

WHOLE BOX PACKAGE

Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

16.2kG

PRODUCT HS CODE

9030331000

ATTENTION !

The above packing and weight data are only refer to model ARTM-Pn.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!

Model	Function	PRICE/USD
ATC450-C	Wireless transceiver; receive data from 60 ATE100M/100/200/400; 1RS485	277
ATC600	Wireless transceiver; receive data from 240 ATE100M/100/200/400; 1RS485; 2 alarm relays	118

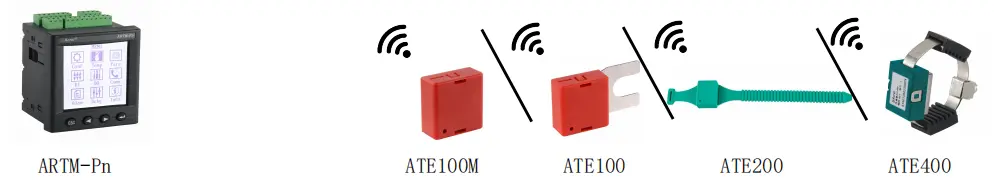

ARTM-Pn	Wireless transceiver; receive data from 60 ATE Sensors, 1RS485, 4DI/2DO	220
ATP007	7 Inch touch screen	176
ATP010	7 Inch touch screen	370
ARTM-8	Intelligent temperature control meter, 8 channels temperature measuring (PT100 Sensor)	100
ARTM-24	Intelligent temperature control meter, 24 channels temperature measuring (PT100 Sensor)	296
