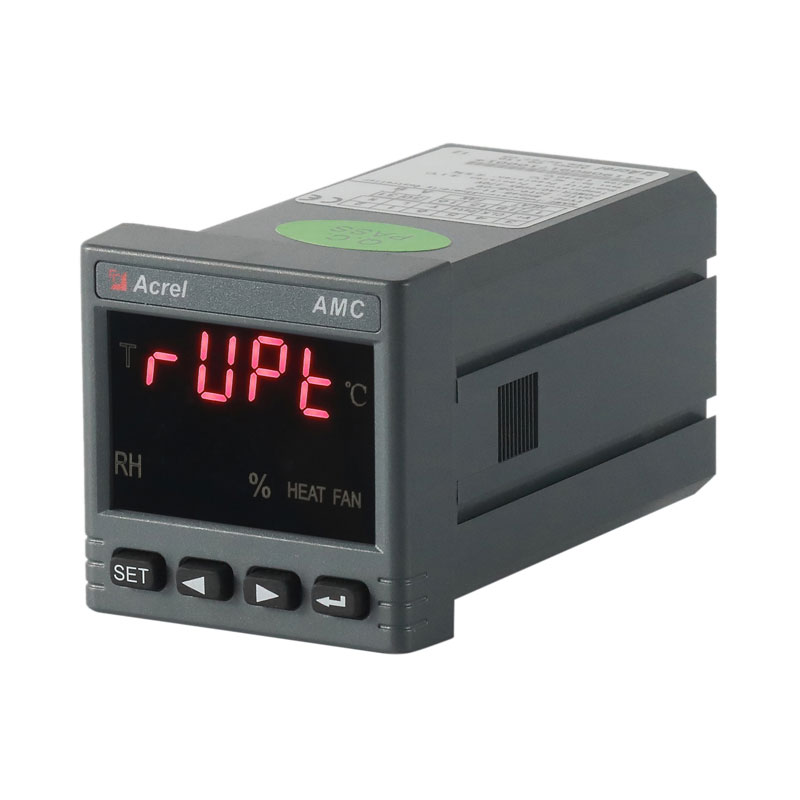

General
WHD series smart temperature and humidity controller is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or flashover etc.from humidity or condensation.
Function
Accuracy Temperature ±1℃ Humidity ±5%RH
Auxiliary power supply AC 85-265V, DC 100-350V
Consumption Auxiliary power supply Basic power consumption(≤0.8w) Relay power consumption(each channel≤0.7w) |
|
| Installation: Panel mounted
Dimension(L*W*H)： Pannel size (L×W): 48*48mm
Cutout size (L×W): 45*45mm Housing (L×W×H): 44*44*86.7mm |
Technical Datasheet
| Technical Parameter | Value |
| Measuring Range | Temperature | -40.0℃~99.9℃ |
| Humidity | 0%RH~99%RH |
| Precision | Temperature | ±1℃ |
Humidity
| ±5%RH |
| Transmitting Output | DC 4-20mA or DC 0~20mA |
| Ser range of controlling parameter | Heating for Temoerature rising | -40.0℃~40.0℃
|
| Blowing for temperature decteasing | 0.0℃~99.9℃
|
| Humidity control | 20%RH~90%RH |
| Output Contact Capacity | 5A/AC250V |
| Start/stop gap | 5 |
| Communication port | RS485,MODBUS(RTU) treaty |
| Auxiliary Power | Voltage | AC/DC 85-265V |
| Consumption | Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w) |
| Insulation Resistanced | ≥100MΩ
|
| Power-frequency withstand voltage | power with shell,touchable metal parts/power with other terminal group 2kV/1 min(AC.RMS) |
| Average work time without stoppage | ≥50000 houts |
| Working condition(controller) | Temperature | -20℃~+60℃ |
| Humidity | ≤95%RH,without condensation and corrisive gas |
| Altitude | ≤2500m |

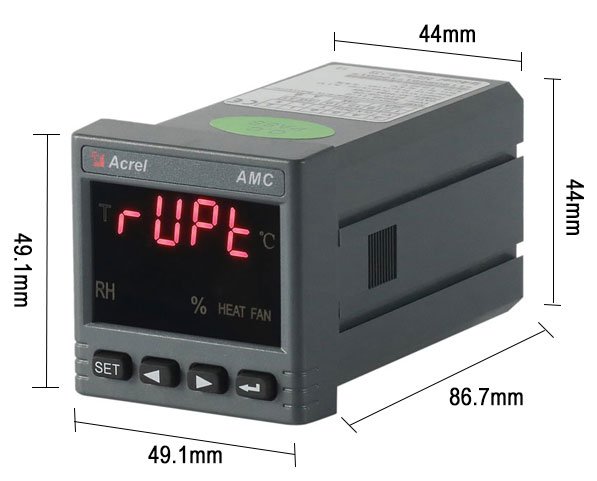

Dimension

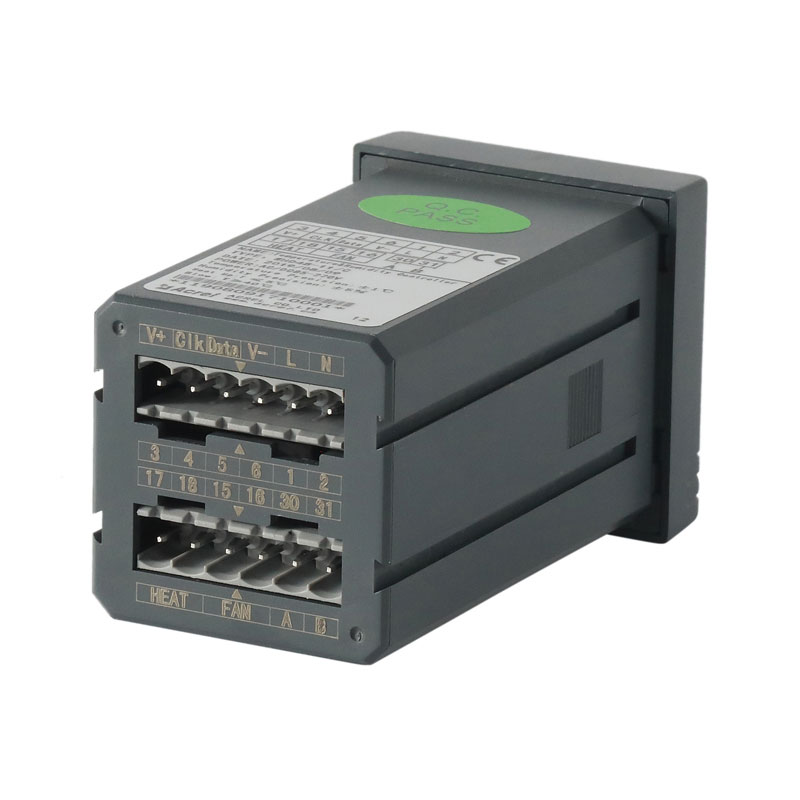

Wiring

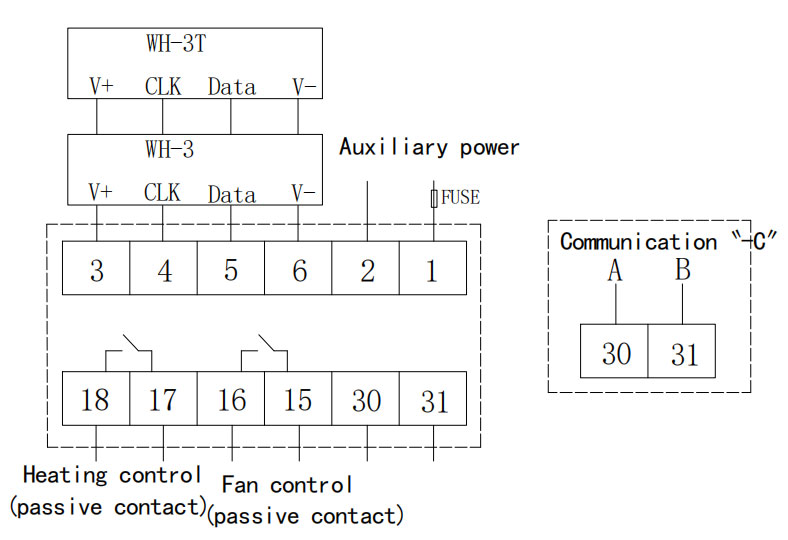

Typical Connection
FAQ
Q: Connect users between the sensor and the controller,Can it be matched?How long is the length in meters?
A: The user can wire,but it is required to use a 4-core shielded wire,and a 2.5-meter shielded wire is attached to the factory.
The longest distance between the sesor and the controller is 20 meters.
Q: Can WHD Switch control manually and automatically?
A: Yes,but be sure to explain to the customer service before placing an order,it is an unnormal operation.
Q: User have their own sensor,can they buy a controller?
A: No,the sensor and controller need to be used together,2 device can not sold seperately.
Package

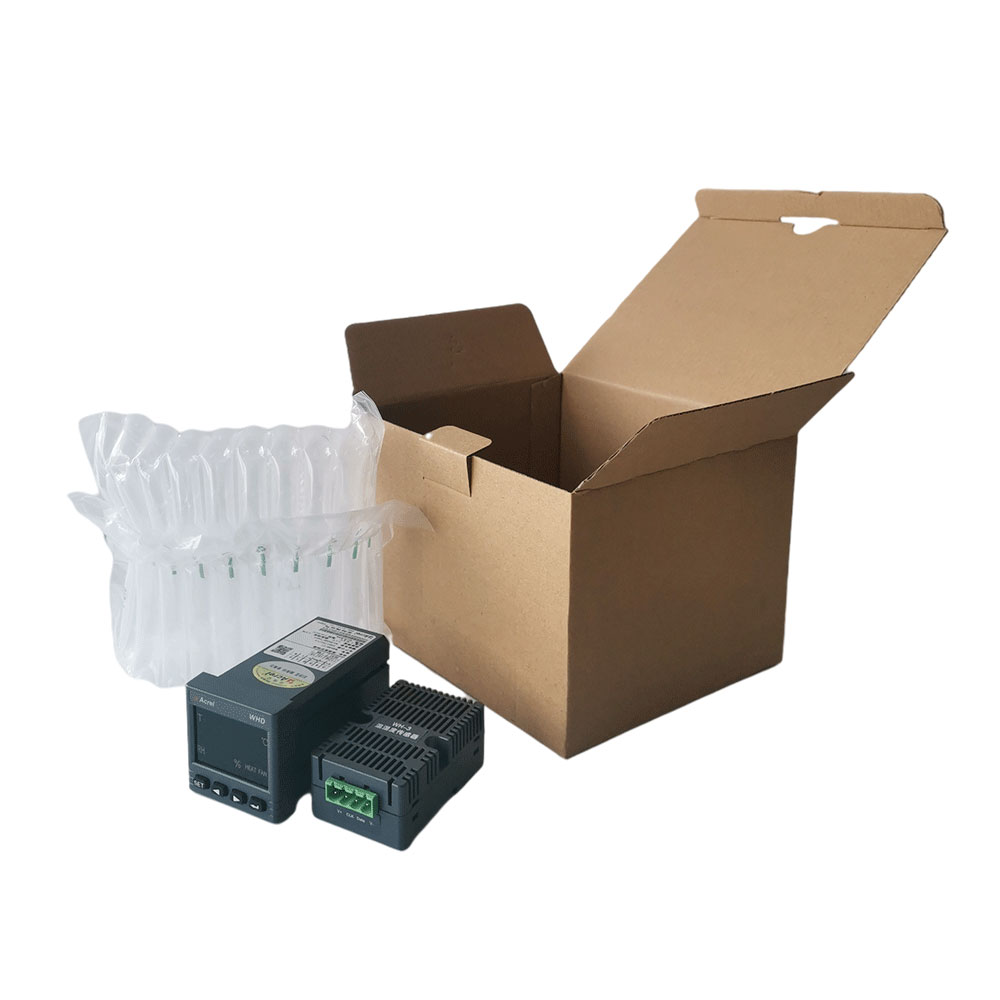

MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PAKAGE
| Package dimensions(1 PC) 170*150*130mm
| Pakage Weight(1 PC) 0.12Kg
|
WHOLE BOX PAKAGE
| Package dimensions(36 PCS) 450*240*250mm
| Pakage Weight(36 PCS) 4.32kG
|
PRODUCT HS CODE
| 9032100000 |
ATTENTION ! The above packing and weight data are only refer to model WHD48-11. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
