ANet-1E2S1-4G Smart IoT Gateway

ANet-1E2S1-4G

● Double wide voltage (DC / AC 85V ~ 265V) reverse connection protection

● Support 2G/3G/4G

● Support local and remote configuration maintenance and real-time data monitoring

● Max.64 device data collection,support MODBUS-RTU or MODBUS-TCP device

● Support breakpoint continuation,Xml, Json for data transmit

● Support standard 8GB SD card (Max. 32GB)

● Multiple alarm setting for each device

General

Embedded Linux platform, high performance, low power consumption,real-time monitoring, Convenient management.

Parameters

Hardware
Technical Data	Index
Processing Element	ARM32 digit Free scale ARM9 i.MX2xx 454MHz
Inner Board Memory	64MB DDR2 internal memory + 128MB NAND Flash + 8G SD Card Electronic hard disk
Serial Interface	Two channels coupling isolation RS485
Ethernet Interface	1 channel 10/100 self-adaption capacity

Wiring

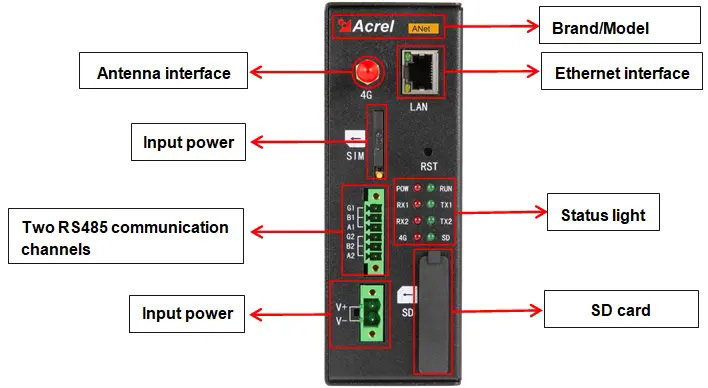

Front Panel

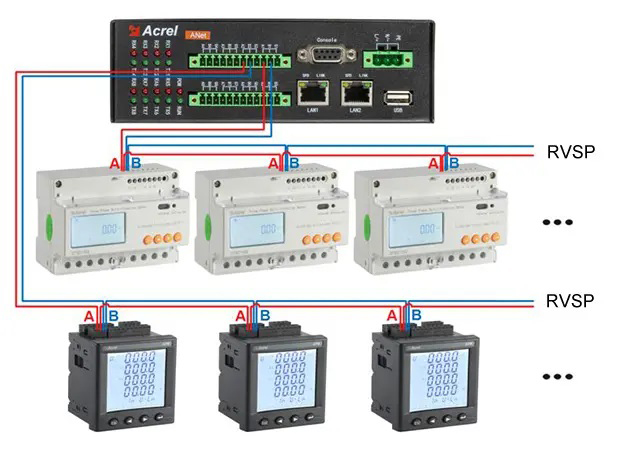

Connection

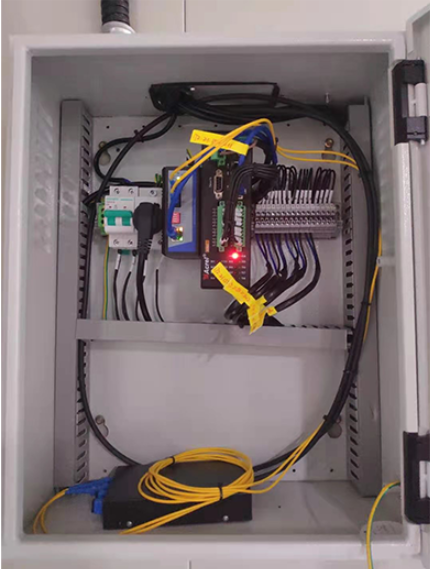

Mounting

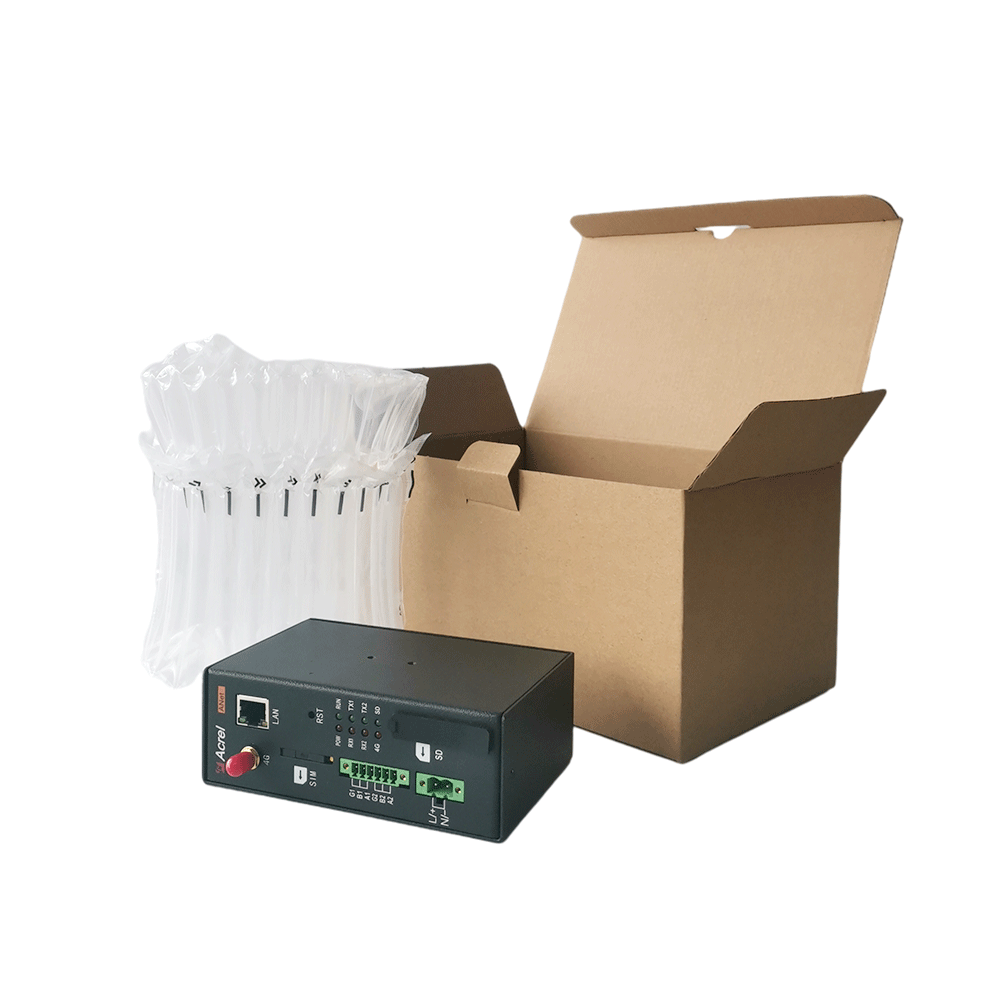

Package

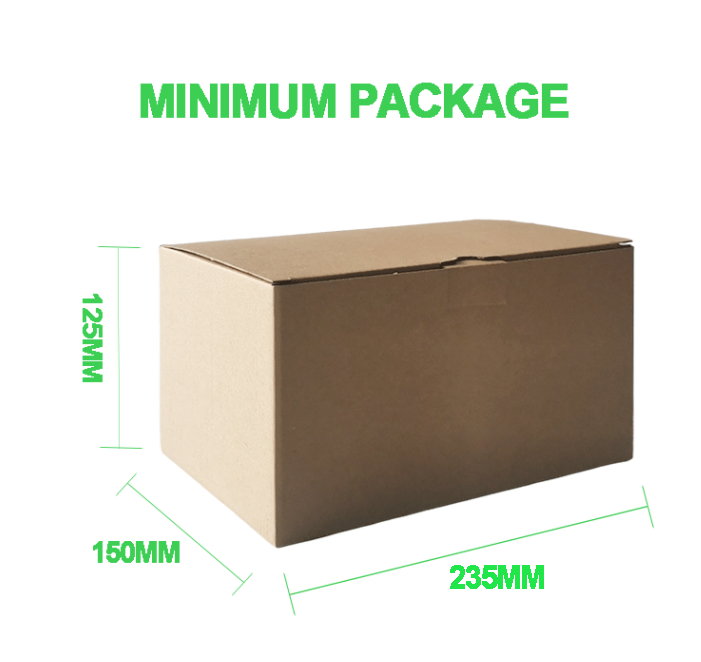

MINIMUM PACKAGE

Package dimensions(1 PC)

235*150*125mm

Pakage Weight(1 PC)

0.952Kg

WHOLE BOX PACKAGE

Package dimensions(24 PCS)

615*480*405mm

Pakage Weight(24 PCS)

22.0848kG

PRODUCT HS CODE

8543709990

ATTENTION !

The above packing and weight data are only refer to model ANeT-1E2S1-4G.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
