BR Rogowski Coil Transducer

BR


Measurement

- Rogowski coil and RMS measurement

- Super-current measurement, direct measurement up to 30000A

- Overload: 1.2 times of rated value


Application

- Industrial automation

- Metallurgical and electroplating


Description

General

Rogowski coil and RMS measurement,Super-current measurement, direct measurement up to 30000A, Overload: 1.2 times of rated value.

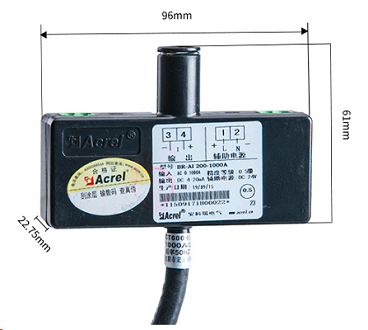

Dimension








① Analog Output-


② Analog Output+

③ Auxiliary Power Suooly+

④ Auxiliary Power Suooly-

⑤ Full Adjustment

⑥ Zero Point Adjustment

⑦ Operating Lamp

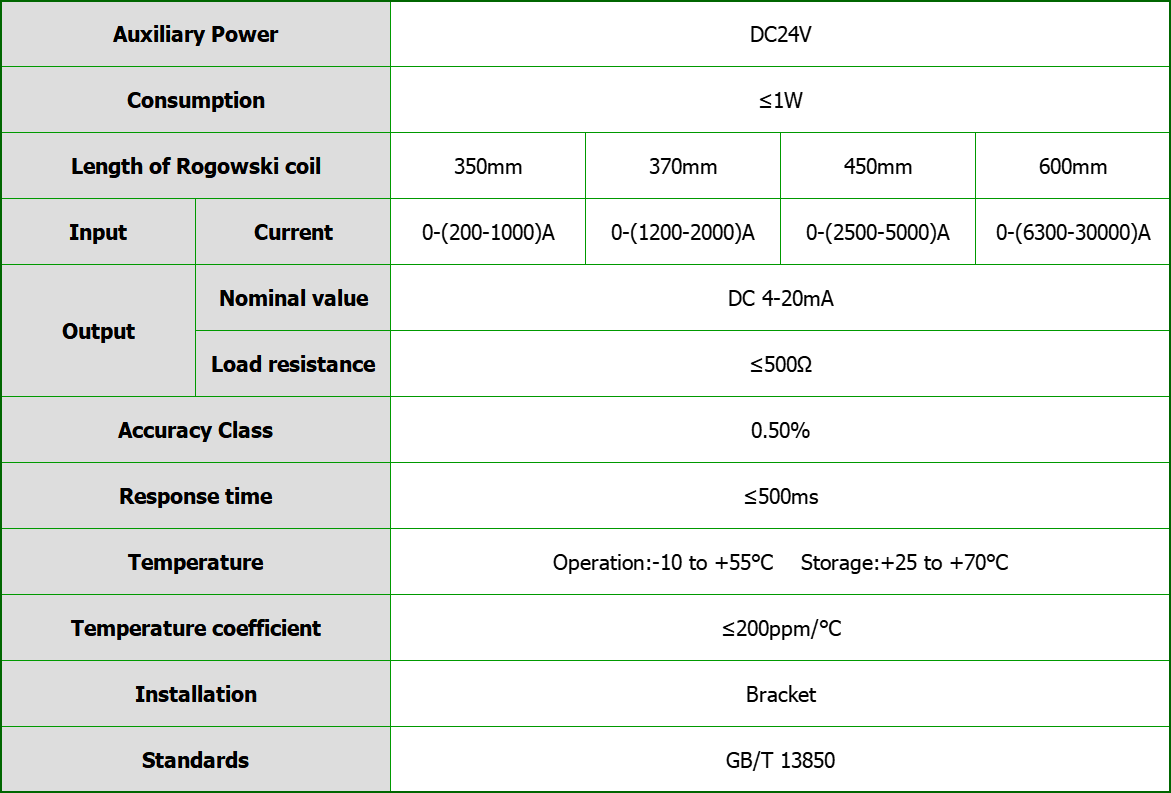

Specifications

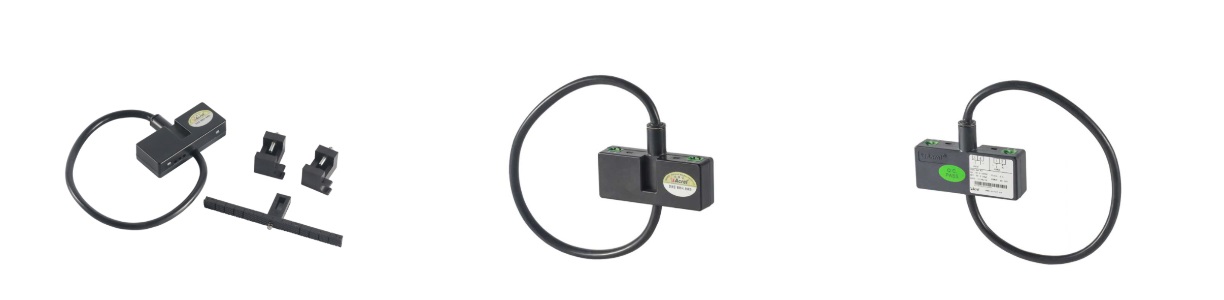

Appearance

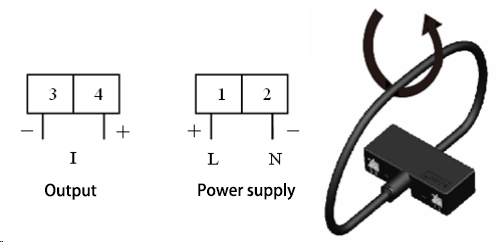

Wiring


Note: the specification wiring is subject to the wiring diagram on the physical enclosure

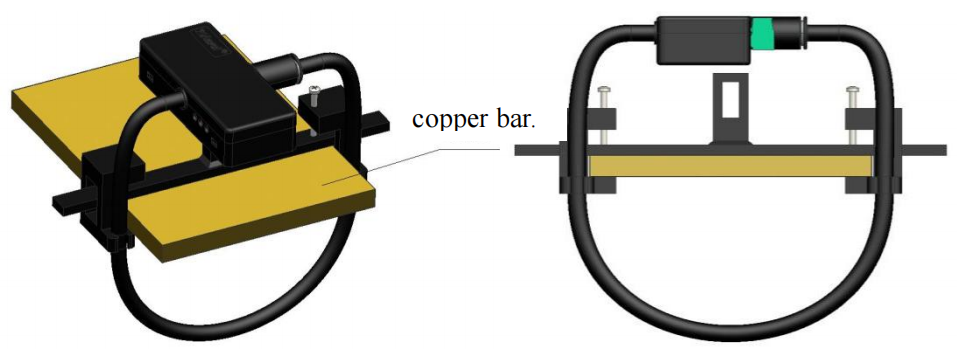

Installation


Package



MINIMUM PACKAGE





MINIMUM PAKAGE


Package dimensions(1 PC)

17*15*12.5cm

Pakage Weight(1 PC)

0.12Kg


WHOLE BOX PAKAGE


Package dimensions(5 PCS)

45.5*26*19.5cm

Pakage Weight(5 PCS)

1.6kG


PRODUCT HS CODE


 9030339000

ATTENTION !

The above packing and weight data are only refer to model BR-AI.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
