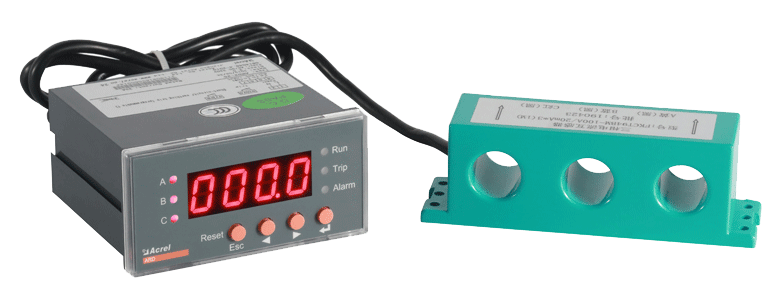

General
ARD2 smart Motor Protector is suitable for motors with rated voltage of AC380V/660V, it can protect the motor within rated current range from timeout start-up,overload, blocking, short circuit, under load, unbalance, phase failure and so on.
Parameters
| Accuracy Active energy: Class 0.5
Frequency Range: 45-65Hz
Auxiliary power supply AC/DC 85~265V
Pulse output 1600-160000imp/kWh
Consumption Voltage: Power consumption <0.5VA; Current: Power consumption< 0.5VA; Auxiliary power supply:power consumption≤10VA |
Installation: Panel mounted

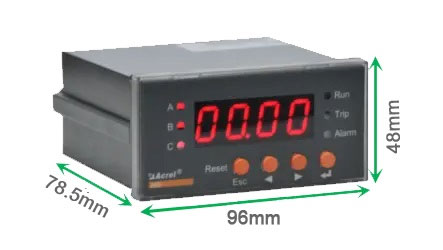

Dimension(L*W*H): 96mm*78.5mm*48mm
|
|
Wiring

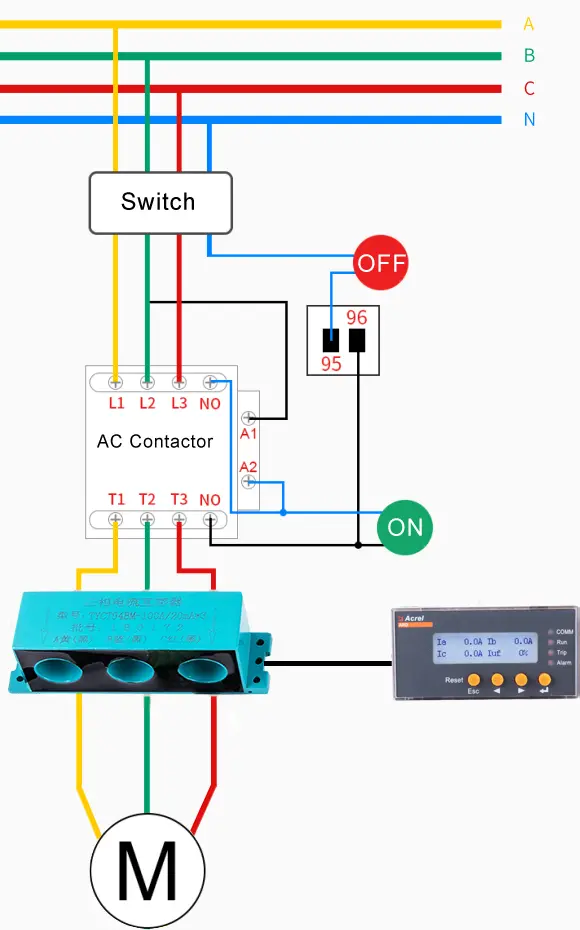

Typical Connection
Application

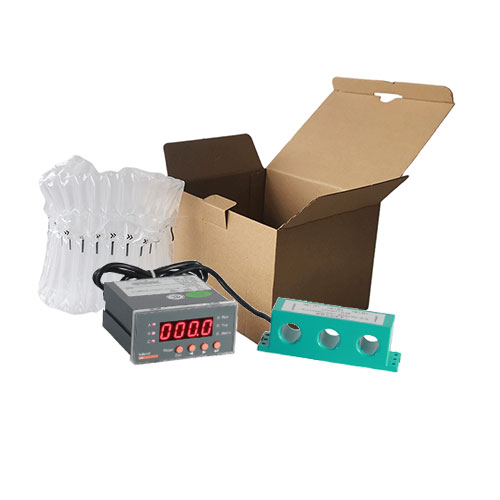

Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PAKAGE
| Package dimensions(1 PC) 180*170*95mm
| Pakage Weight(1 PC) 0.8Kg
|
WHOLE BOX PAKAGE
| Package dimensions(10 PCS) 480*455*200mm
| Pakage Weight(10 PCS) 7.82kG
|
PRODUCT HS CODE
| 8536300000
|
ATTENTION ! The above packing and weight data are only refer to model ARD2-25. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
