AIM-M200 Medical Intelligent Insulation Monitor

AIM-M200



● Insulation monitoring for medical IT systems

● Load and temperature monitoring of isolation transformer

● Device disconnection monitoring

● LED indicators: On, Insulation, Overload, Overtemp

● Alarm relay output

● Test button

● Insulation fault location

● Din 35mm

● RS485 (MODBUS-RTU) + CAN



Description

General

The AIM-M200 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M200 is designed to support insulation fault location.



Parameter



Auxiliary Power

VoltageDC24V(±25%）
Power consumption<3VA






Insulation Monitoring




Accuracy0~±10%
Alarm Value Range50~999kΩ
Measuring Voltage<12V
Measuring Current<50uA
Response Time<2s



Temperature Monitoring

SensorPT100
Measuring Range-50~+200℃
Alarm Value Range-50~+200℃




Current Monitoring

Measurement Value2.1~50A
Alarm Value Range5~50A
Accuracy5%
Display MethodValue and Percentage Display

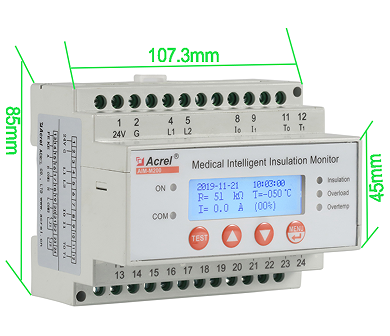

Dimension

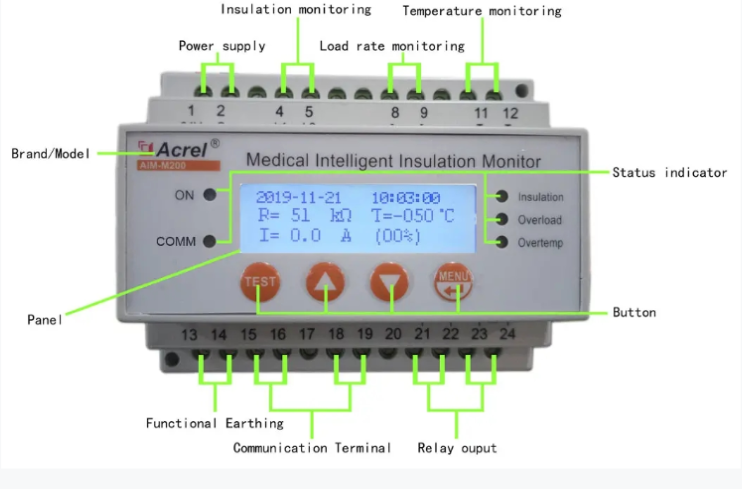

Front Panel

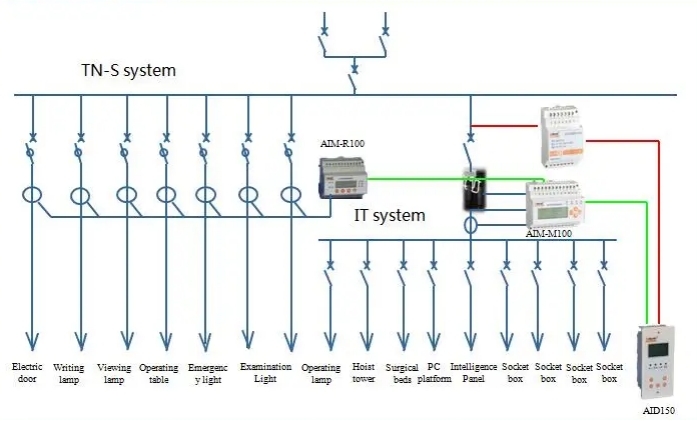

Network

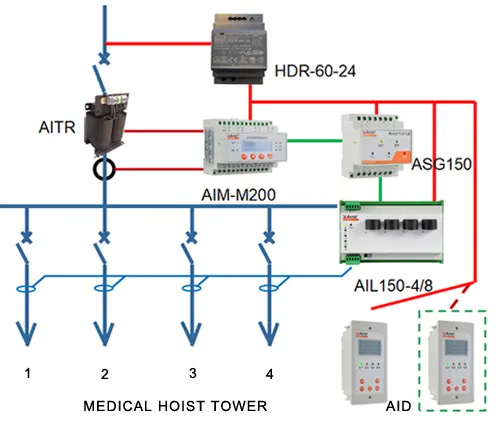

Applicaiton:ICU/CCU



Applicaiton:Operating Room










Package



MINIMUM PACKAGE




MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.5Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Pakage Weight(36 PCS)

18kG


PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model AIM-M200.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
