AMC100-ZD DC precision power distribution monitoring device

AMC100-ZD


● Monitors the voltage, current, power, and electric energy of 2 independent incoming lines A+B
● 8 digital input, 4 digital output
● 1 channel temperature and humidity monitoring
● 3 channels RS485 Modbus-RTU


Description

General


AMC100 series precision powerdistribution monitoring devices are applied to IDC data centers such as finance, operators,governments, IT, etc. The product can be flexibly configuredreal-time monitoring and centralized management of thepower consumption of the entire data center.

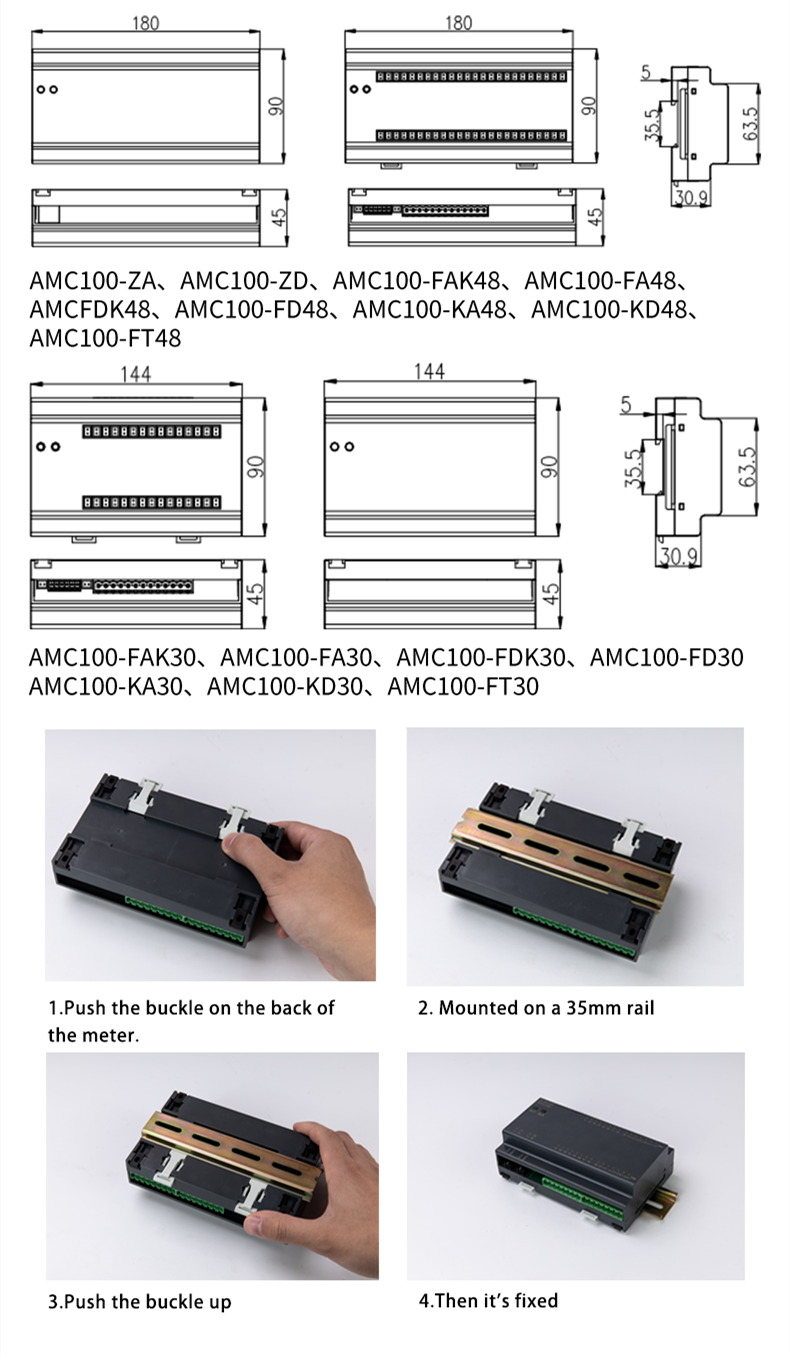

Dimension & Installation




Wiring

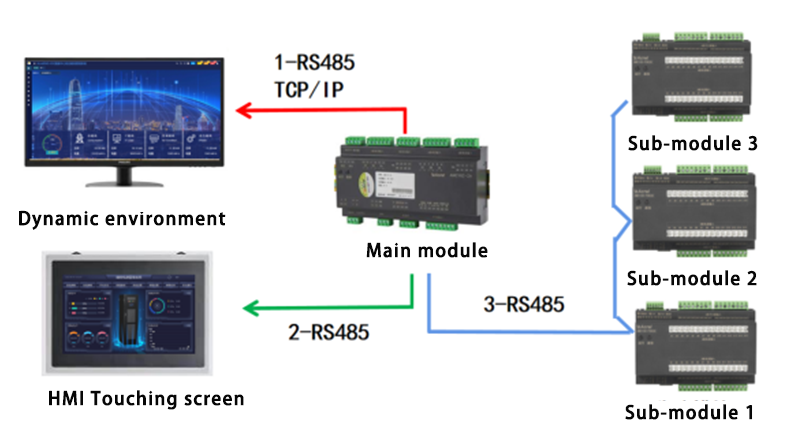

Network

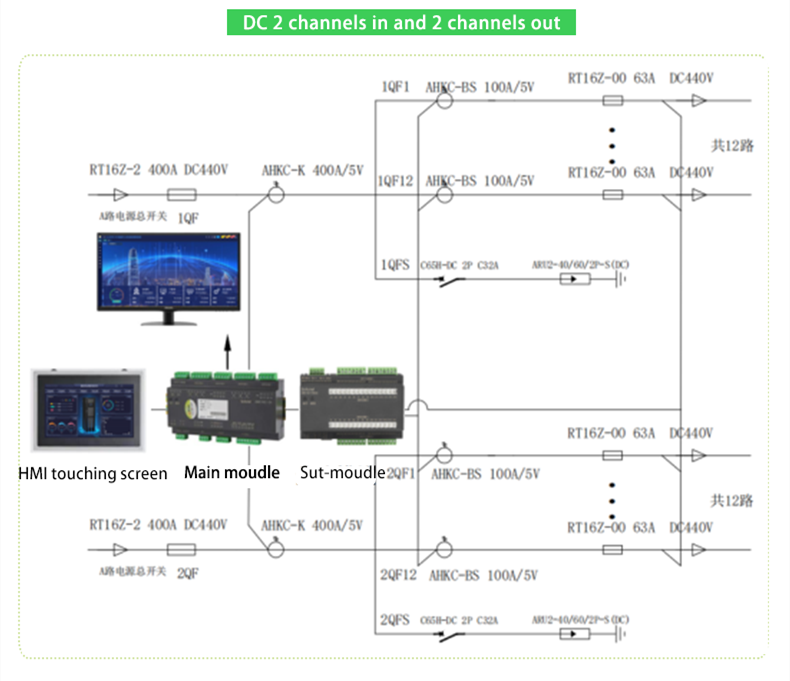

Cabinet Diagram

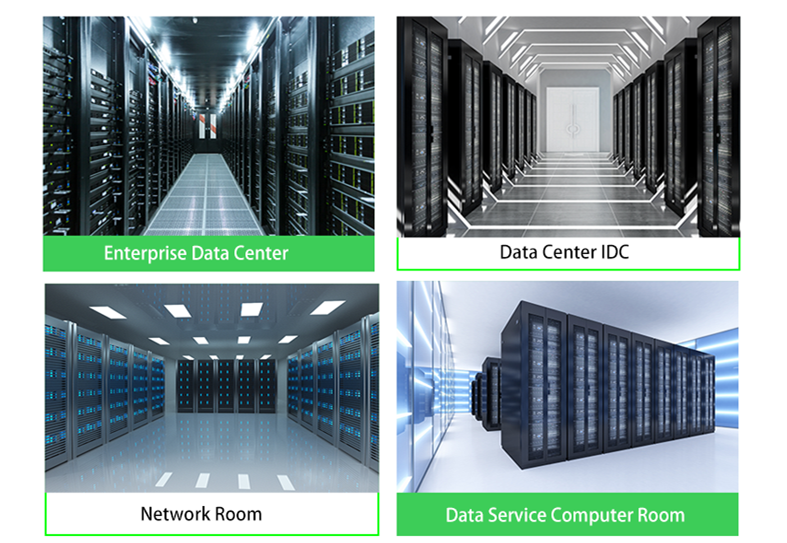

Application





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

220*170*90mm

Pakage Weight(1 PC)

0.29Kg

WHOLE BOX PACKAGE

Package dimensions(24PC)

220*170*90mm


Pakage Weight(24 PC)

6.96Kg



PRODUCT HS CODE


9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-ZD.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
