AMC16Z-FDK24/48 DC multi circuits energy meter

AMC16Z-FDK24/48

● Designed specifically for the power supply management of server in the data center

● A+B independent 24 circuits（48 in total）

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-31st  Harmonic

● kWh Class 0.5

● DIN 35 mm


Description

General

AMC16Z-FDK24/48 DC multi circuits energy meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.


Parameters


* 24 channels of each circuit of A+B

*independent 2 circuits the outgoing current,

*active power, active power, reactive power

* 2-31st harmonic, 48DI
* 1 RS485 communication




 *Installation:

DIN rail 35mm


* Dimension(L*W*H)：

180*94.3*75mm


Technical parameters
AMC16Z-FDK24
AMC16Z-FDK48
Measured parameter
Voltage,current,power,electrical energy,switching state
Bus voltage
Ratetd
48VDC,240VDC,336VDC
Currentoutcoming line circuit
Ratetd
5V (Hall sensor,external power supply ±12V)
Measurement precision
Outgoing line
Voltage/current level 0.5,power/electric energy level 1
Auxiliary power
Get power supply from AMC16Z-ZD
Environment
Work: -15℃ ~ 55℃ Storage: -25℃ ~ 70℃  Relative humidity ≤93%
Communication
RS485/Modbus-RTU
Installation
DIN35mm guide rail or baseplate mounted
Protection level
IP20
Security
All terminals and the insulation resistance between the conductive piecesnot below 100 m Ω


Installation & Dimension


Wiring



Network

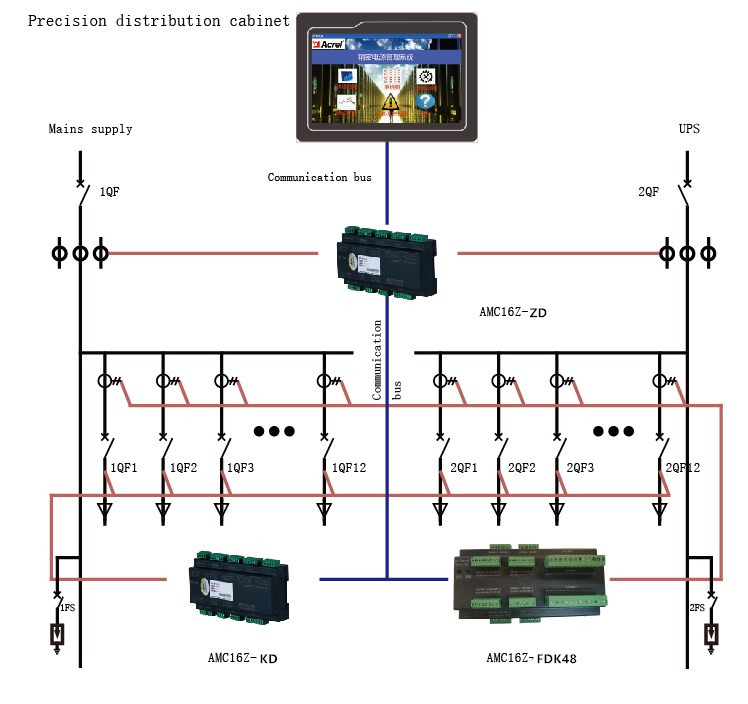

Cabinet Diagram




Site Installation Photos




Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

220*170*90mm

Pakage Weight(1 PC)

0.23Kg

WHOLE BOX PACKAGE

Package dimensions(24PC)

615*480*395mm


Pakage Weight(24PC)

5.52Kg



PRODUCT HS CODE


 9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-FDK48.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
