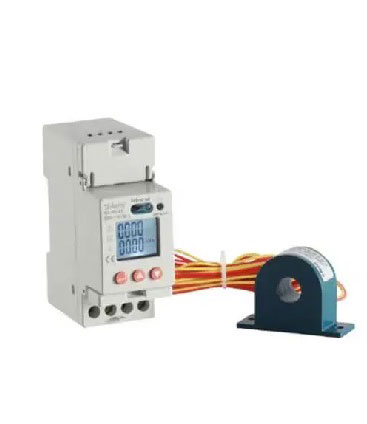

ADL100-ET Din Rail Energy Meter with CT

ADL100-ET


● AC220V

● 10(60)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

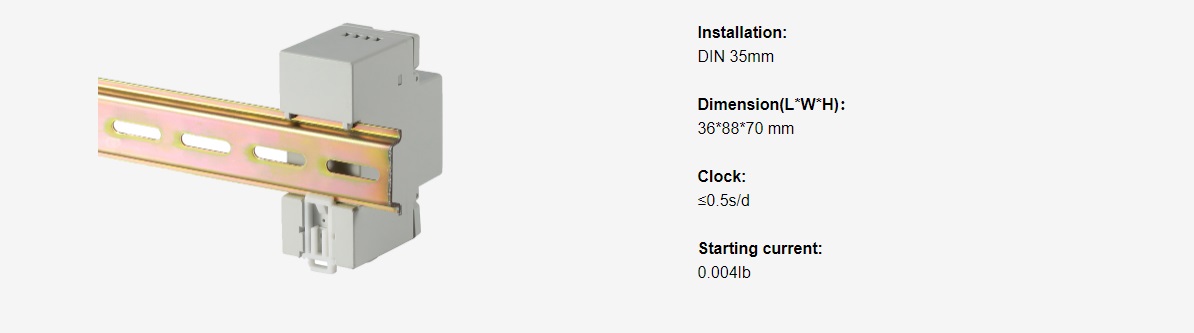

● DIN 35 mm


Description

General

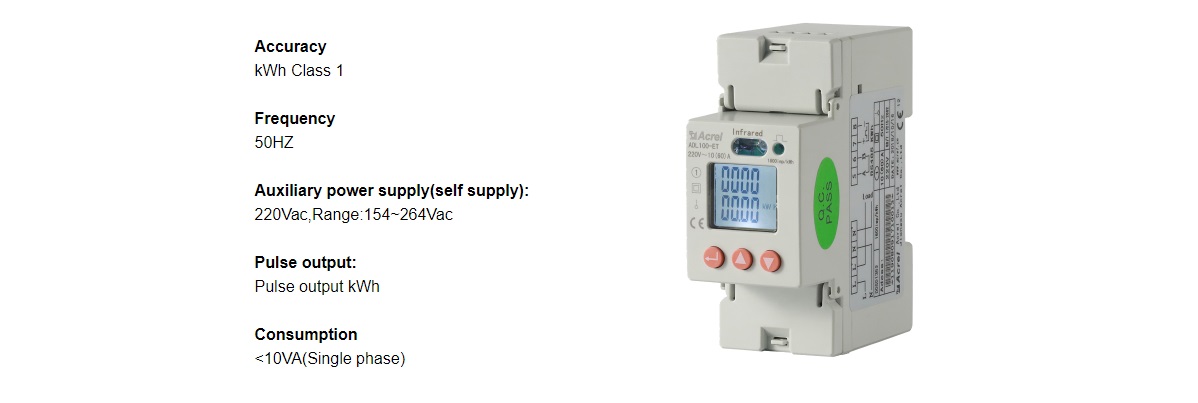

ADL100 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.



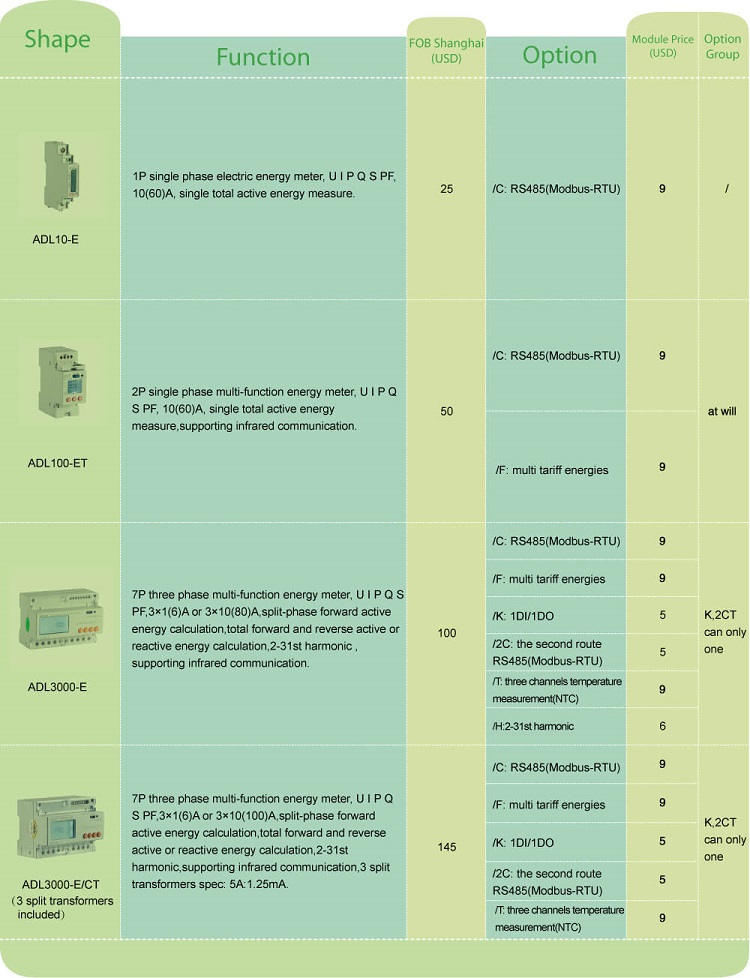

Functions



Technical Parameters


Input voltage

Rated voltage

AC 220V

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A,20A

Maximum current

60A,100A

Starting current

4‰Ib

Consumption

<4VA

Measurement performance

Accuracy of measuring

kWh Class 1

Range of measuring

000000.00~999999.99kWh

Clock accuracy

≤0.5s/d

Active pulse

Pulse width

80±20ms

Pulse constant

1600imp/kWh

Communication

Interface

RS485(A+B-)

Connection mode

Shielded twisted pair conductors

Protocol

MOD BUS- RTU

Dimensions (Length × Width × Height)

88mm×36mm×70mm

Temperature

Work temperature

-25℃~55

Storage Temperature

-40℃~70℃

Relative humidity

≤95%(No condensation)

Altitude

<2000m

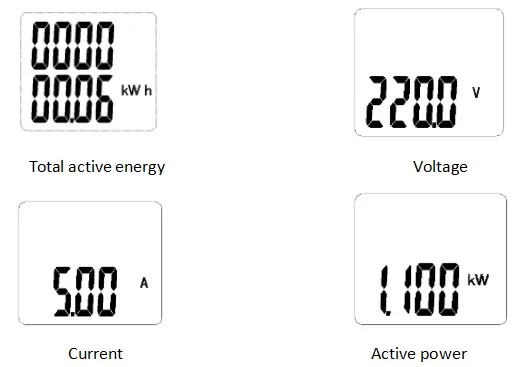

Display

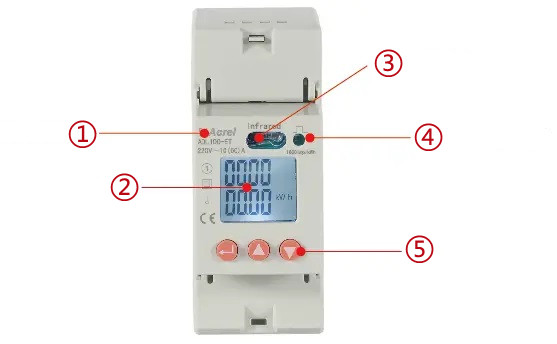

Front Panel





① Brand/Model

② Panel

③ Infrared Interface

④ Pulse output light

⑤ Button

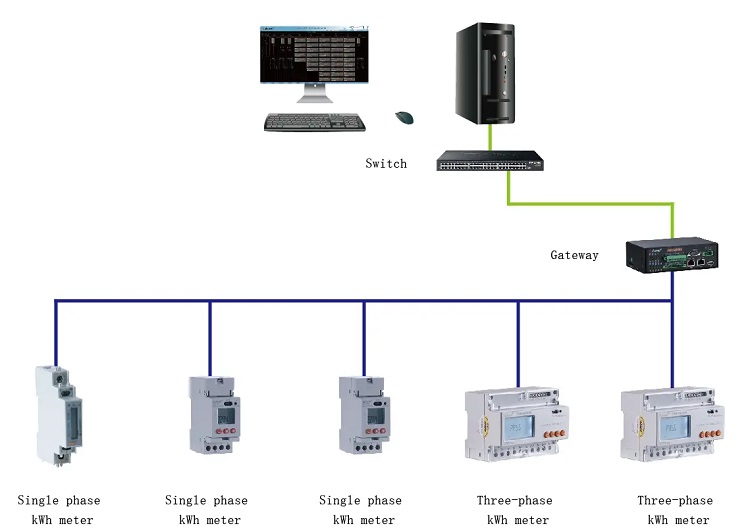

Network

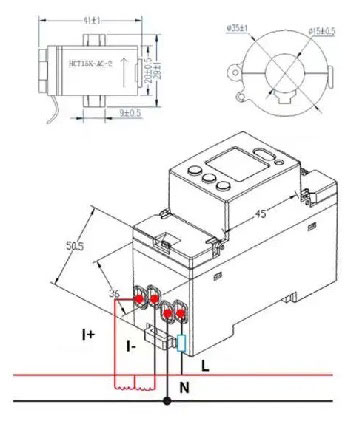

Installation

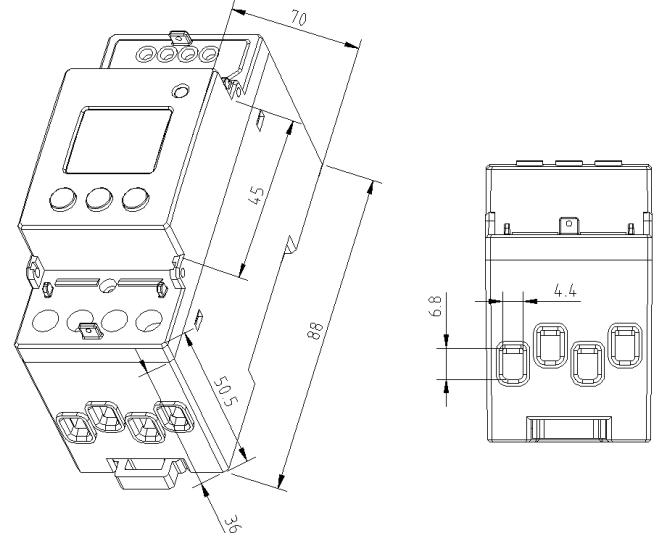

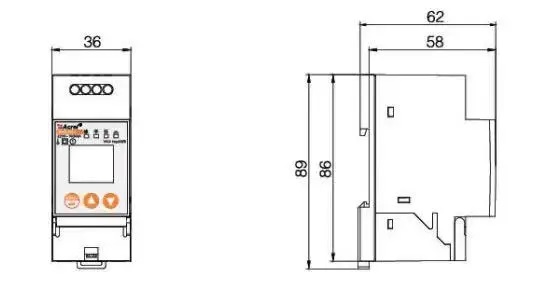

Dimension








Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(4 PC)

170*150*130mm

Net Weight(0.034KG/PC*4)

0.136KG


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

480*460*200mm

Package Weight(36 PCS)

2.304KG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADL100-ET.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
