ADL10-E Single Phase Din Rail Energy Meter

ADL10-E


● AC 220V

● 10（60）A

● RS485，MODBUS-RTU

● LCD display

● kWh Class 1，Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm

● IEC 62052-11:2003

   62053-22:2003



Description

General

ADL10 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.



Functions



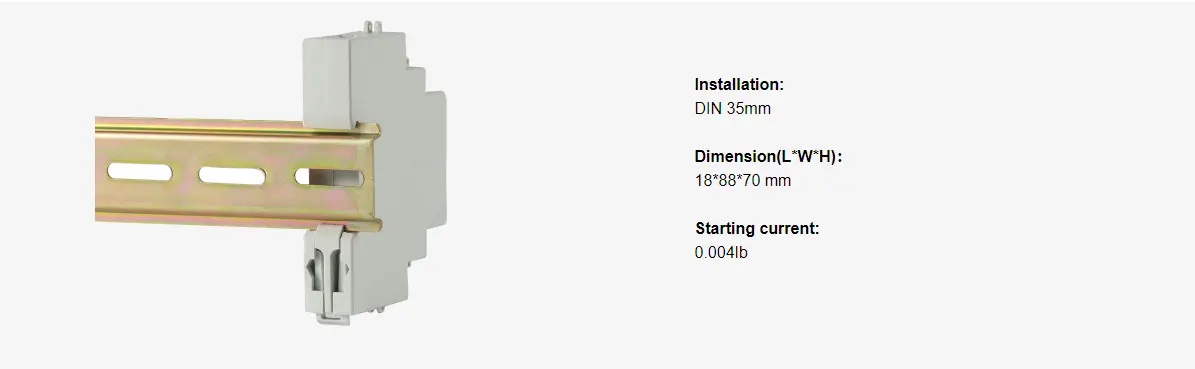

Technical Parameters


Input voltage

Rated voltage

AC220V

Frequency

50Hz

Power consumption

<10VA

Maximum current

60A

Starting current

0.004Ib

Consumption

<4VA

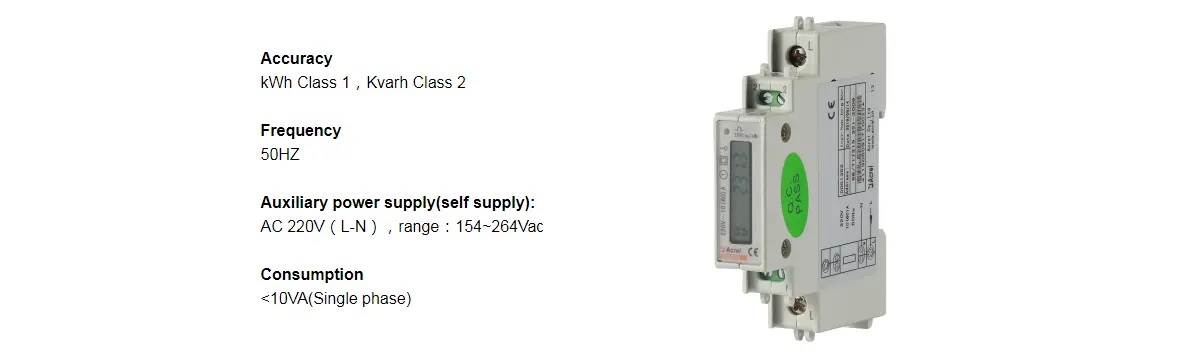

Measurement performance

Accuracy

Class 1

Measuring range

000000.00~999999.99kWh

Communication

Interface

RS485

Protocol

MOD BUS- RTU



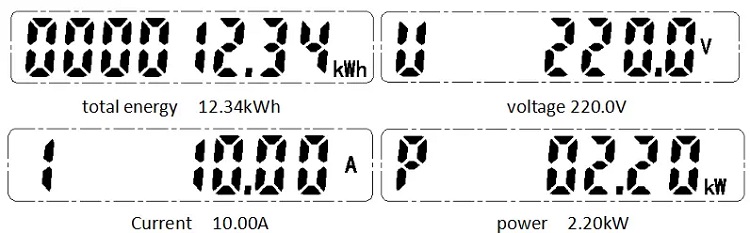

Display




Front Panel

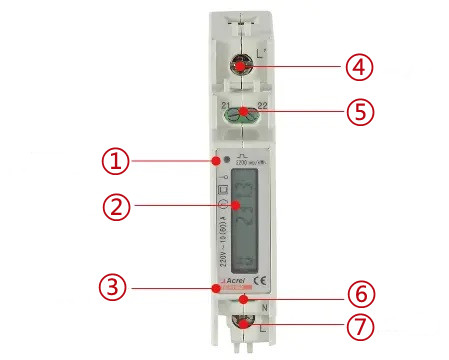

① Pulse output light


⑤ Panel


③ Brand/Model


④ Outlet-wire


⑤ RS485


⑥ Neutral


⑦ Enter-wire





Network





Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(4 PCS)

170*150*130mm

Net Weight(0.083KG/PC*4)

0.332Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

480*460*200mm

Package Weight(36 PCS)

4.069KG


PRODUCT HS CODE


 9028301400

ATTENTION !

The above packing and weight data are only refer to model ADL10-E.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
