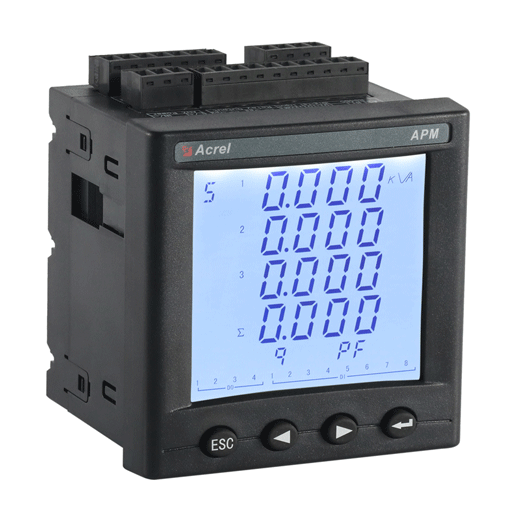

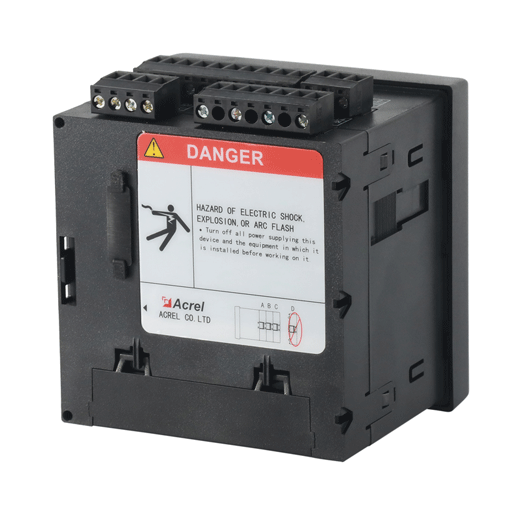

APM810 AC Multifunction Meter

APM810


● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

● Harmonic: 1%(2~42nd), 2%(43~63rd)

● Accuracy: 0.5s


Description

General


APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.




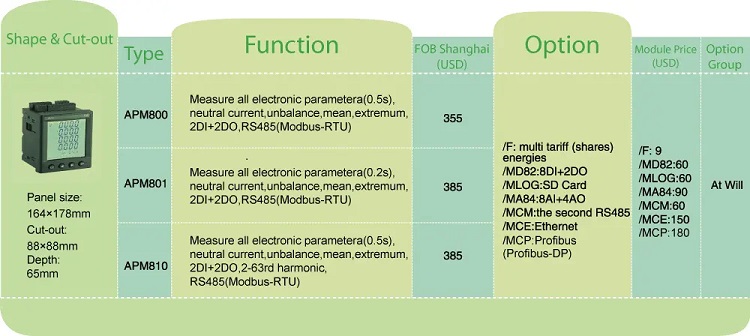

Parameter


Accuracy

Voltage、current and power: Class 0.2

Active power: Class 0.5S; Reactive power: Class 2


Pulse Output

Output mode: Optocoupler pulse with open collector;

Pulse constant: 4000 (5A)、8000 (1A) imp/kWh;


Consumption

Voltage、current: Power consumption: <0.5VA;

Auxiliary power supply: Power consumption ≤15VA


Starting Current: 0.1%

Installation: Panel mounted


Frequency: Range: 45-65Hz


Relay: 3A/AC250V, 3A/DC30V


Dimension (L*W*H)

Panel size (L×W): 96*96mm

Cut-out size (L×W): 92*92mm


Auxiliary Power Supply

AC/DC 85V~265V or AC/DC 115~415V

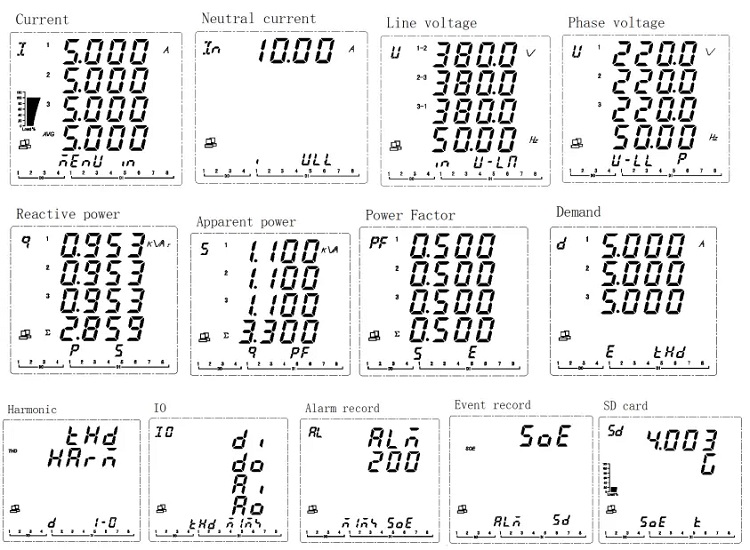

Display

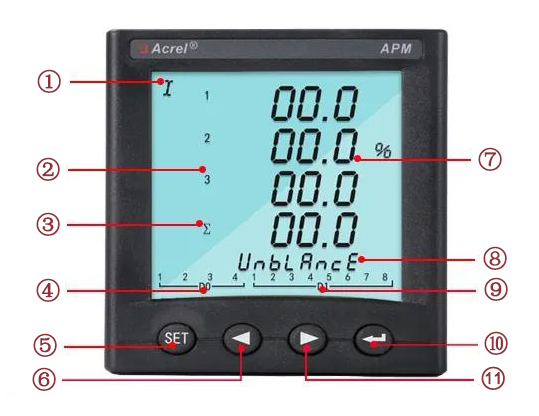

Front Panel



Type of Parameters

Load Value

Total Power

④ DO Status Indicator

⑤ Menu

⑥ Key Down

⑦ Data Display

⑧ Navbar

⑨ DI Status Indicator

⑩ Enter Button

⑪ Key up

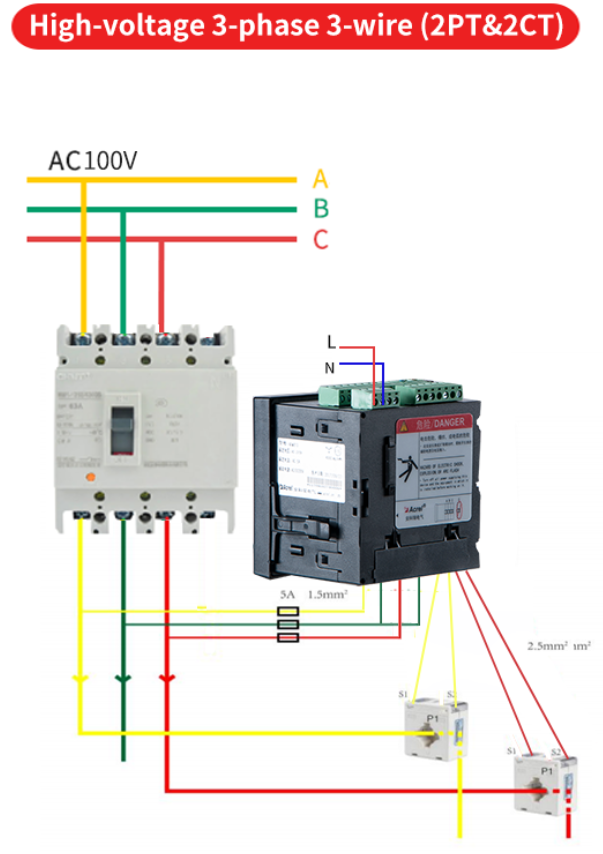

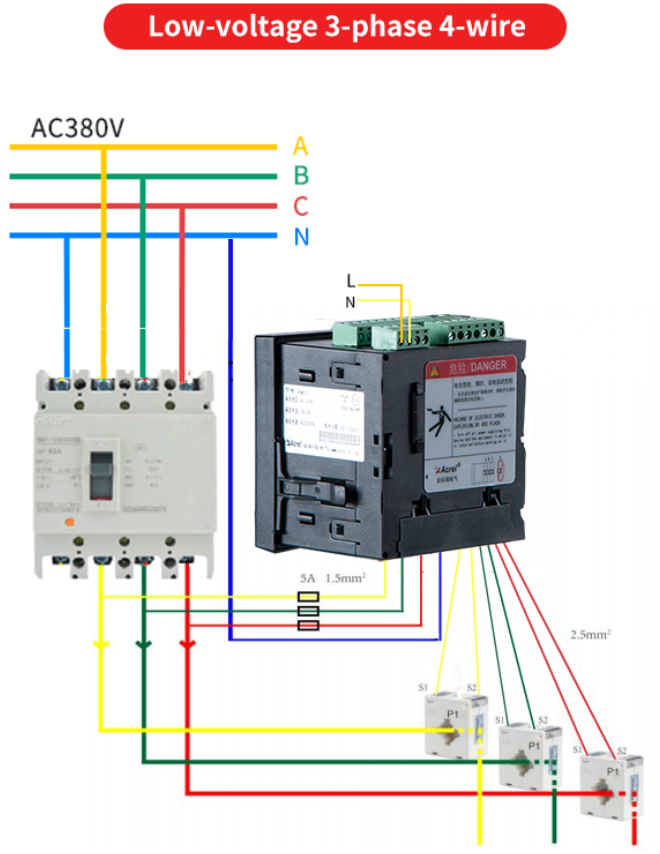

Wiring

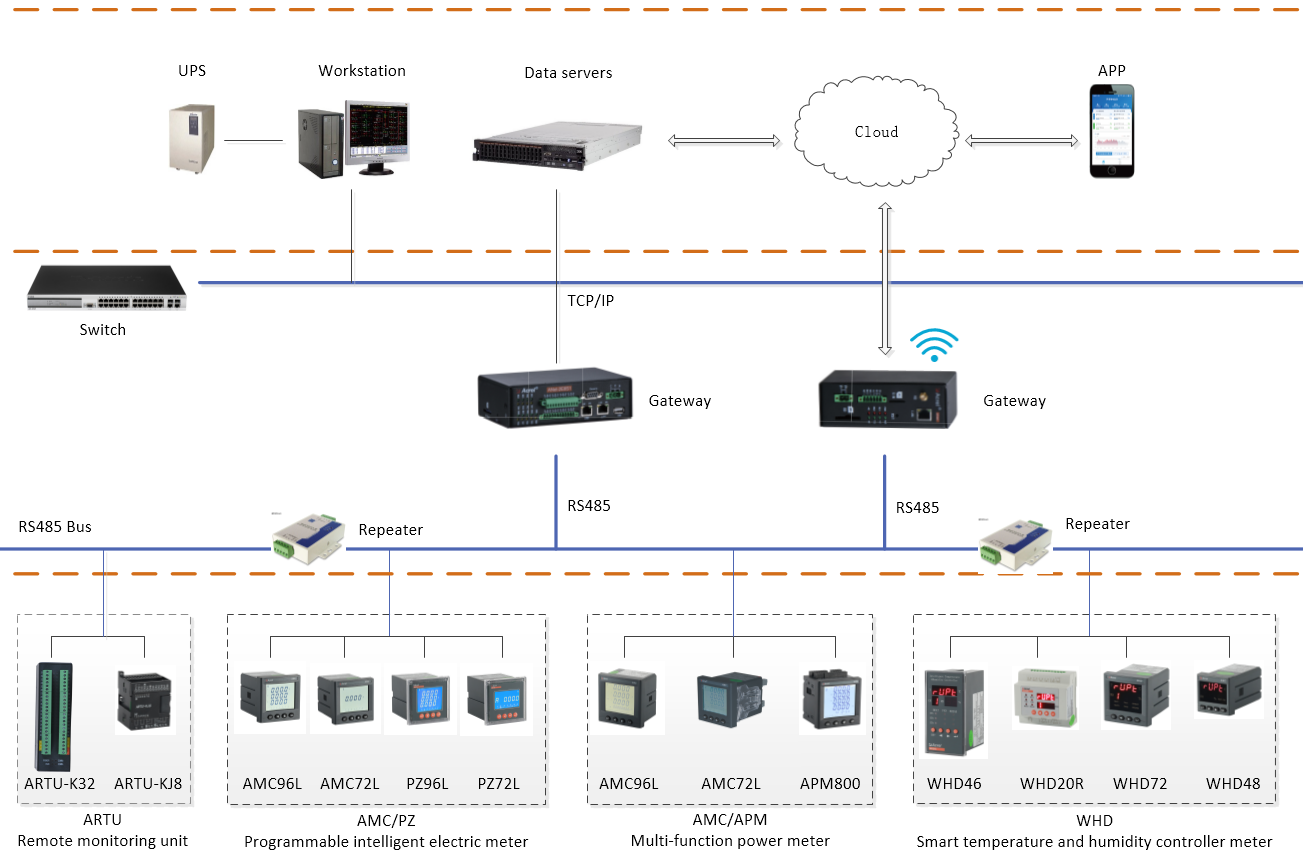

Network





Installation



① Cut out a 92*92mm hole on the panel. (If not existed)


② Unleash all the static, move off installation  terminal, put in the panel.


③ Fixed the meter on panel by using the incidental brackets with buckle.


④ Installation complete.

Application


Mining

Petrochemical

Building

Hotel

Municipal Project

Transportation

Hospital

Electric Safety

FAQ


Q: What’s the storage capacity, storage format and data storage interval of SD card?

A: The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)


Q: How should I select the expanded modules of APM8xx?

A: Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random


Q: The features of APM8xx?

A: Except for wave record and SD card storage function, 0.2S measuring accuracy can also be a option. Besides, APM8xx can serve as reverse display meter (which means 3-phase electrical parameters measuring plus 8-channel reverse display) Also, users can measure the data through browser by using Ethernet auto WEB.


Q: As for the auxiliary power supply of APM8xx?

A: AC/DC 85~265V or 115~415V is both optional. Also, 380V  line voltage can also serve as power supply.

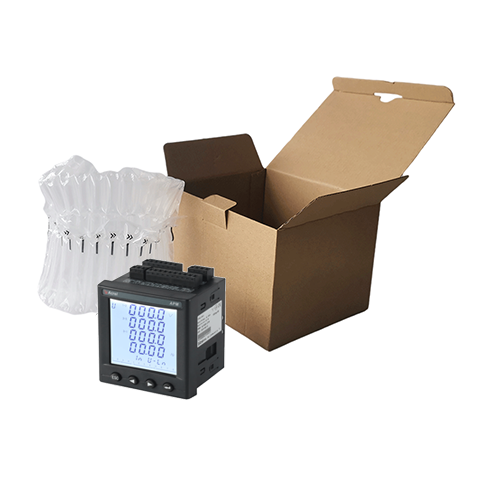

Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.372Kg


WHOLE BOX PACKAGE


Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

14.5kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model APM810.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
